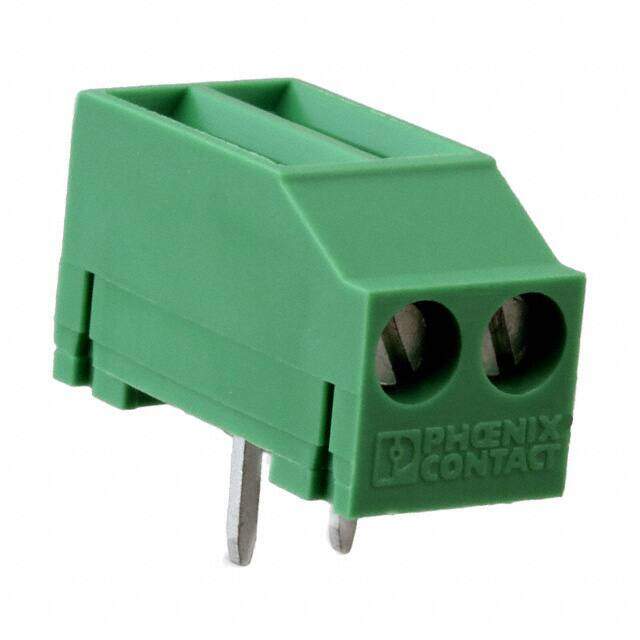

1771529
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
Fixed Terminal Blocks MKDSFW 3/ 2
PDF
/
Buying Options
Total Price: USD $2.55
Unit Price: USD $2.552
≥1 USD $2.552
≥10 USD $2.48336
≥100 USD $2.32056
≥500 USD $2.13488
≥1000 USD $2.094963
Inventory: 65
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 4.320014g
Technical
Packaging Bulk
Published 2011
Series COMBICON MKDSFW
Feature Interlocking (Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Color Green
Number of Rows 1
Voltage - Rated 400V
HTS Code 8536.69.40.40
Pitch 0.197 5.00mm
Orientation Right Angle
Depth 20.5mm
Reach Compliance Code unknown
Current Rating 24A
Wire Gauge 12-30 AWG
Voltage 300V
Max Supply Voltage 250V
Max Current Rating 24A
Number of Levels 1
Current 16A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 2
Safety Approval UL; CSA
Mating Orientation Vertical with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M3
Number of Positions Per Level 2
Fastening Method SOLDER
Dimensions
Height 15.5mm
Length 10mm
Width 16.2mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Lead Free
