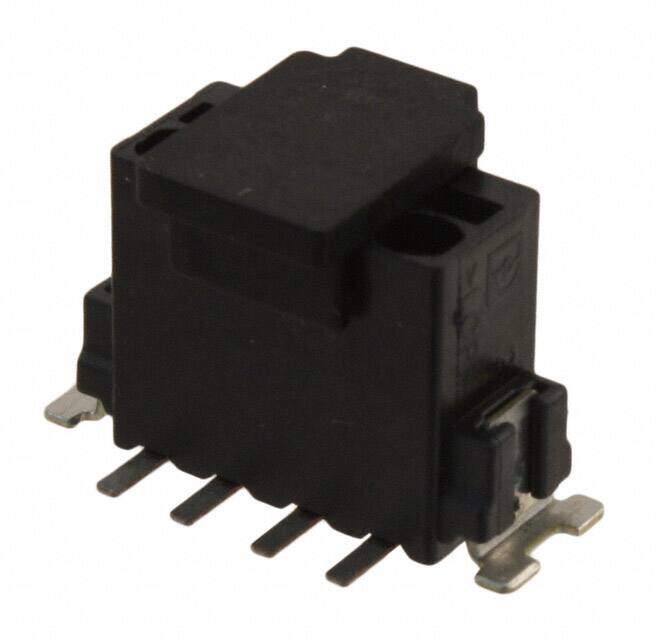

1771114 image
Favorite
1771114 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description CONN TERM BLK 4POS 2.5MM SMD
PDF
/
Buying Options
Total Price: USD $0.78
Unit Price: USD $0.7832
≥1 USD $0.7832
Inventory: 98
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount
Housing Material Liquid Crystal Polymer (LCP)
Weight 2.449994g

Technical

Packaging Tape & Reel (TR)
Published 2010
Series COMBICON PTSM
Feature Solder Retention
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Color Black
Voltage - Rated 160V
Pitch 0.098 2.50mm
Orientation Straight
Current Rating 6A
Number of Contacts 4
Wire Gauge 20-26 AWG
Voltage 150V
Max Current Rating 6A
Number of Levels 1
Current 5A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 24 AWG
Terminal and Terminal Block Type STRIP TERMINAL BLOCK
Mating Orientation Vertical with Board
Wire Termination Screwless - Spring Cage, Tension Clamp

Dimensions

Height 9mm
Length 5mm
Width 12.8mm

Compliance

RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
