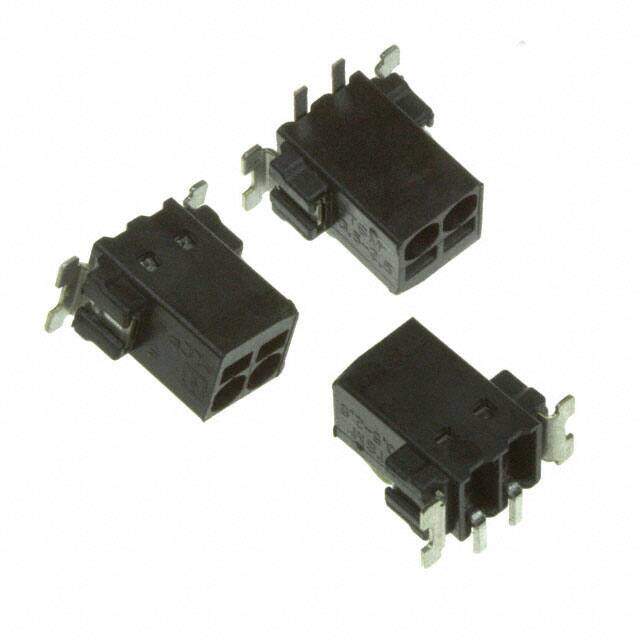

1771091
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
CONN TERM BLK 2POS 2.5MM SMD
PDF
/
Buying Options
Total Price: USD $312
Unit Price: USD $0.78
≥400 USD $0.78
Inventory: 10000
Minimum: 400
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount
Housing Material Liquid Crystal Polymer (LCP)
Weight 1.949994g
Technical
Packaging Tape & Reel (TR)
Published 2010
Series COMBICON PTSM
Feature Solder Retention
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Color Black
Number of Rows 1
Voltage - Rated 160V
Additional Feature STANDARD: UL 94V-0, LCP
HTS Code 8536.69.40.40
Pitch 0.098 2.50mm
Orientation Straight
Current Rating 6A
Number of Contacts 2
Wire Gauge 20-26 AWG
Voltage 150V
Max Current Rating 6A
Number of Levels 1
Current 5A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 24 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Ways 2
Safety Approval EAC; UL
Mating Orientation Vertical with Board
Wire Termination Screwless - Spring Cage, Tension Clamp
Fastening Method SPRING LOADED
Dimensions
Height 7.8mm
Length 5mm
Width 9mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
