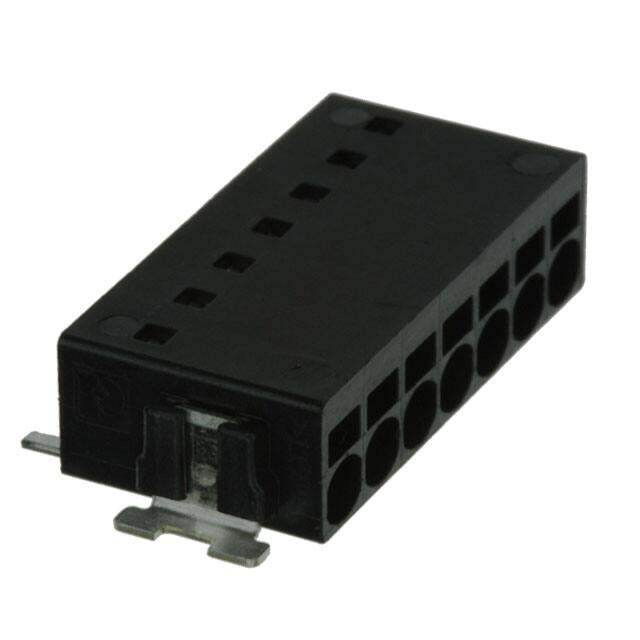

1771075 image
Favorite
1771075 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description CONN TERM BLK 7POS R/A 2.5MM SMD
PDF
/
Buying Options
Total Price: USD $1.01
Unit Price: USD $1.012
≥1 USD $1.012
Inventory: 1000
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 13 Weeks

Physical

Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount
Housing Material Liquid Crystal Polymer (LCP)

Technical

Packaging Tape & Reel (TR)
Published 2010
Series COMBICON PTSM
Feature Solder Retention
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Color Black
Voltage - Rated 160V
HTS Code 8536.69.40.40
Pitch 0.098 2.50mm
Orientation Straight
Current Rating 6A
Number of Contacts 7
Wire Gauge 20-26 AWG
Voltage 150V
Max Current Rating 6A
Number of Levels 1
Current 5A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 20 AWG
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Mating Orientation Horizontal with Board
Wire Termination Screwless - Spring Cage, Tension Clamp

Dimensions

Height 5.22mm
Length 9mm

Compliance

RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
