1770584
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

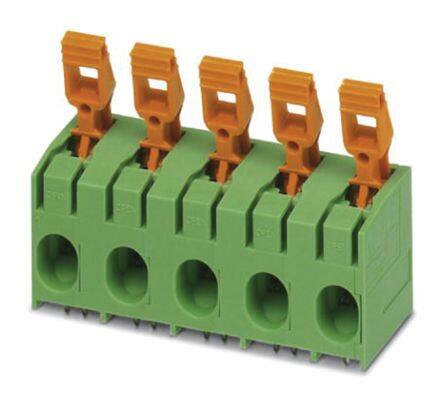

Fixed Terminal Blocks PLH 16/ 7-15
PDF
/
Inventory: 1104
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 64.000012g
Technical
Packaging Bulk
Published 2011
Series COMBICON PLH
Feature Interlocking (Side), Lever Actuated
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Number of Positions 7
Color Green
Gender Female
Voltage - Rated 1kV
HTS Code 8536.69.40.40
Pitch 0.591 15.00mm
Depth 29mm
Current Rating 76A
Wire Gauge 4-18 AWG
Voltage 600V
Number of Levels 1
Current 66A
Wire Gauge (Max) 18 AWG
Wire Gauge (Min) 4 AWG
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Mating Orientation Horizontal with Board
Wire Termination Screwless - Spring Cage, Tension Clamp
Dimensions
Height 29mm
Length 30.5mm
Width 101.4mm
Compliance
RoHS Status RoHS Compliant
