1770403
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

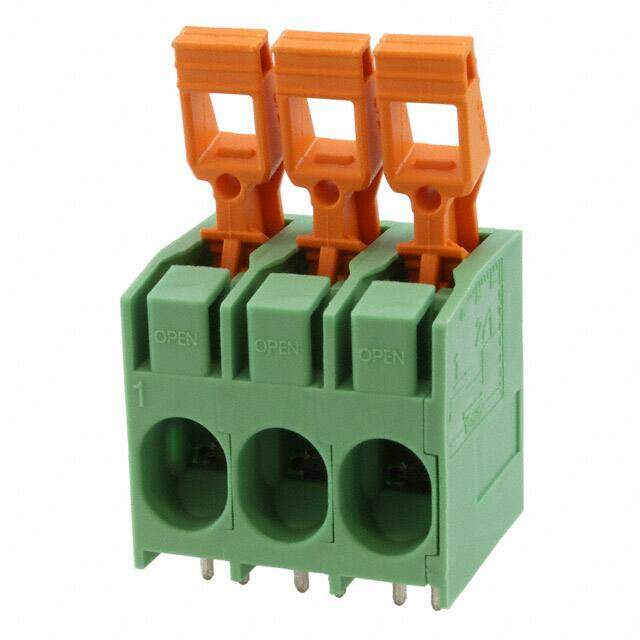

Fixed Terminal Blocks PLH 16/ 3-10
PDF
/
Buying Options
Total Price: USD $32.01
Unit Price: USD $32.012441
≥1 USD $32.012441
≥200 USD $12.773204
≥500 USD $12.346512
≥1000 USD $12.135135
Inventory: 1118
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Material Polyamide
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2012
Series COMBICON PLH
Feature Interlocking (Side), Lever Actuated
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Color Green
Gender Male
Voltage - Rated 400V
Pitch 0.394 10.00mm
Orientation Horizontal
Depth 49.7mm
Current Rating 76A
Approval Agency CB, UL, VDE
Number of Contacts 3
Wire Gauge 6-18 AWG
Voltage 300V
Max Current Rating 76A
Number of Levels 1
Current 51A
Wire Gauge (Max) 18 AWG
Wire Gauge (Min) 6 AWG
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Mating Orientation Horizontal with Board
Wire Termination Screwless - Spring Cage, Tension Clamp
Dimensions
Height 29mm
Length 30.5mm
Width 31.4mm
Compliance
RoHS Status RoHS Compliant
