1751468
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

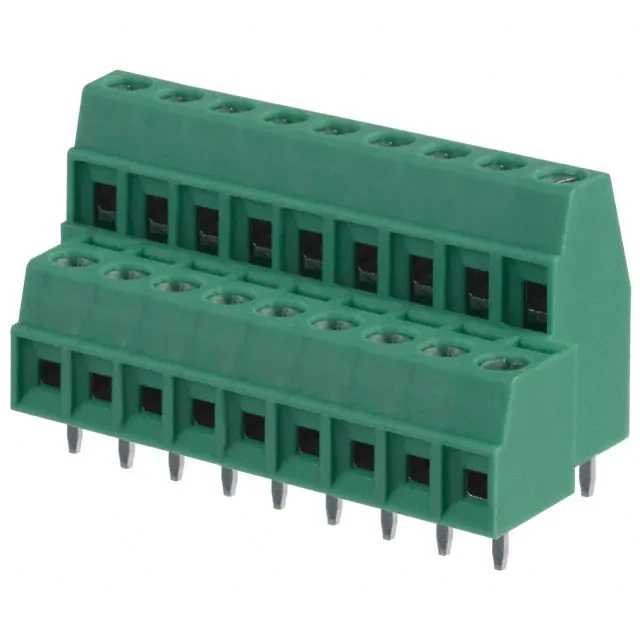

Conn PC Terminal Block 18 POS 3.5mm Solder ST Thru-Hole 8A
PDF
/
Buying Options
Total Price: USD $13.63
Unit Price: USD $13.6312
≥1 USD $13.6312
≥10 USD $13.26248
≥100 USD $12.3948
≥500 USD $11.403216
≥1000 USD $11.189763
Inventory: 81
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Dimensions
Height 16.2mm
Technical
Number of Positions Per Level 9
Screw Thread M2
Wire Termination Screw - Rising Cage Clamp
Mating Orientation Horizontal with Board
Safety Approval UL
Number of Ways 9
Positions Per Level 9
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Decks 1
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 30 AWG
Number of Levels 2
Max Current Rating 10A
Voltage 300V
Wire Gauge 16-30 AWG
Number of Contacts 18
Current Rating 8A
Orientation Straight
Pitch 0.138 3.50mm
Voltage - Rated 200V
Number of Rows 1
Color Green
Connector Type Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MKKDS
Published 2011
Packaging Bulk
Physical
Weight 1.360777kg
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 4 Weeks
