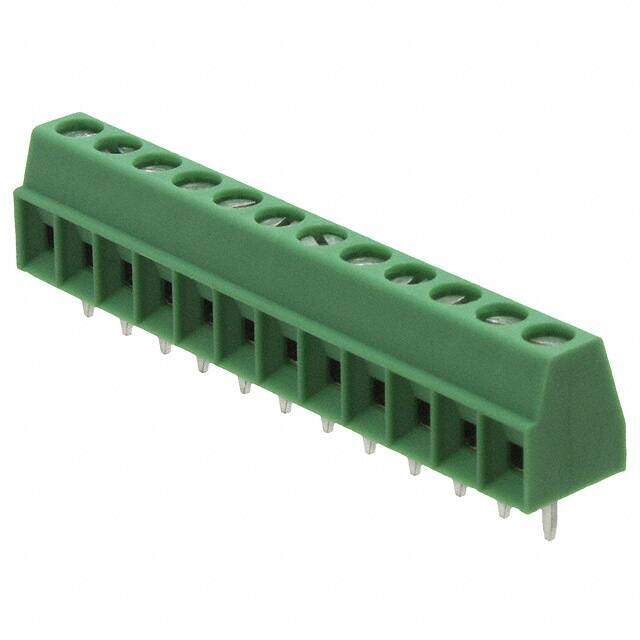

1751345
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
Fixed Terminal Blocks 12P 3.5mm 90DEG
PDF
/
Buying Options
Total Price: USD $2.77
Unit Price: USD $2.770662
≥1 USD $2.770662
≥10 USD $2.700022
≥100 USD $2.652928
Inventory: 14
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Tin
Mount Through Hole
Mounting Type Through Hole
Insulation Material Nylon
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 6.200012g
Technical
Packaging Bulk
Published 2005
Series COMBICON MKDS
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Color Green
Number of Rows 1
Gender Male
Voltage - Rated 200V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Pitch 0.138 3.50mm
Orientation Straight
Depth 7.3mm
Current Rating 13.5A
Approval Agency CB, CSA, UL, cULus
Number of Contacts 12
Wire Gauge 16-30 AWG
Voltage 300V
Max Supply Voltage 160V
Max Current Rating 12A
Number of Levels 1
Current 10A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 16 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 12
Safety Approval UL
Mating Orientation Horizontal with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M2
Stripping Length 5mm
Dimensions
Height 12mm
Length 42.5mm
Width 7.3mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
