1744442
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

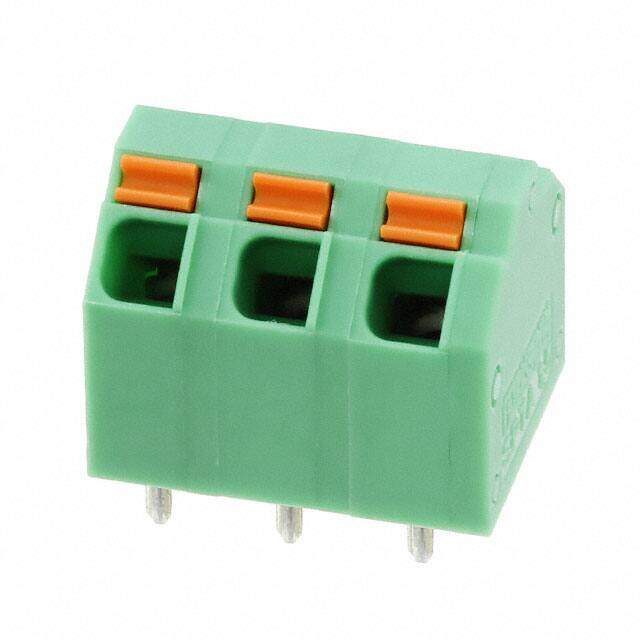

Fixed Terminal Blocks SPTA 1.5/3-5.08 3P 5.08MM
PDF
/
Buying Options
Total Price: USD $1.89
Unit Price: USD $1.8928
≥1 USD $1.8928
≥10 USD $1.55056
Inventory: 90
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Material Polyamide
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2011
Series COMBICON SPTA
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Number of Positions 3
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 320V
Additional Feature PA, UL 94V0
Pitch 0.200 5.08mm
Reach Compliance Code unknown
Current Rating 9A
Wire Gauge 16-26 AWG
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 24 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Ways 3
Safety Approval UL
Mating Orientation 45° (135°) Angle with Board
Wire Termination Screwless - Spring Cage, Tension Clamp
Fastening Method SPRING LOADED
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
