1736780
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

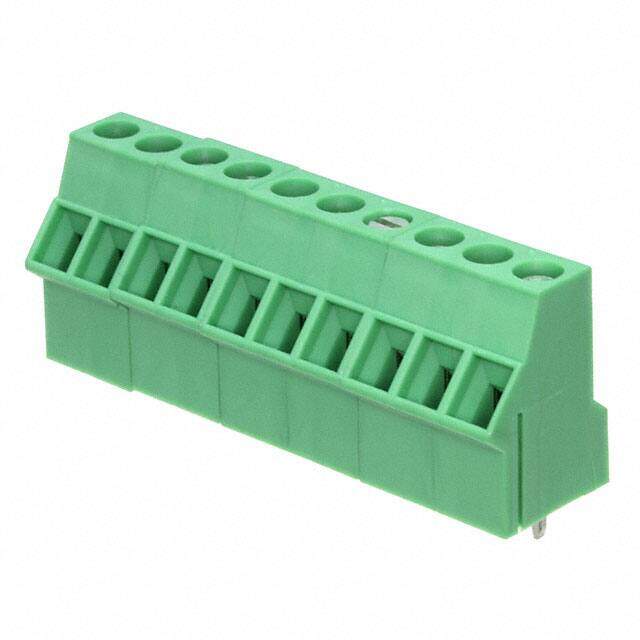

Conn PC Terminal Block 10 POS 5.08mm Solder Thru-Hole 20A
PDF
/
Buying Options
Total Price: USD $8.2
Unit Price: USD $8.2016
≥1 USD $8.2016
≥10 USD $7.97456
≥100 USD $7.45272
≥500 USD $6.85652
≥1000 USD $6.728163
Inventory: 124
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Contact Material - Plating Tin Plated
Technical
Packaging Bulk
Published 2011
Series COMBICON SMKDS
Feature Interlocking (Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Number of Positions 10
Color Green
Number of Rows 1
Voltage - Rated 400V
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Current Rating 20A
Wire Gauge 12-30 AWG
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 10
Safety Approval CB; CSA; CUL; EAC; SEV; UL
Mating Orientation 40° (130°) Angle with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M3
Wire Cross Section 2.5 mm2
Dimensions
Length 14.25mm
Compliance
RoHS Status RoHS Compliant
