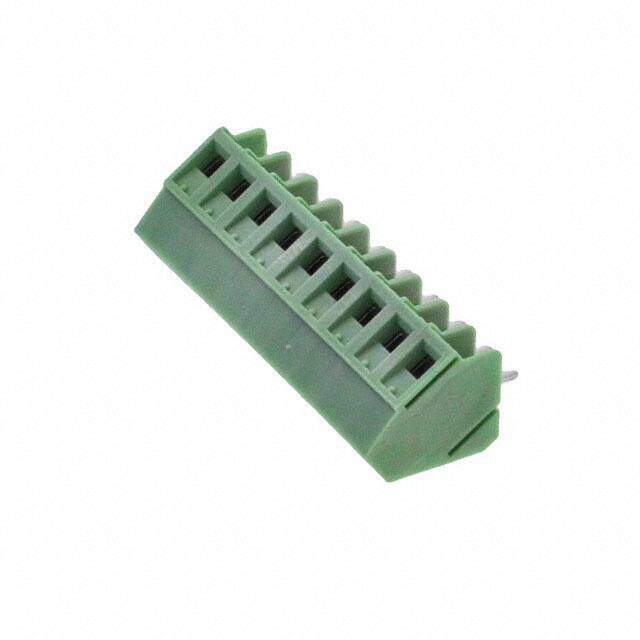

1733648
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
Fixed Terminal Blocks SMKDSP 1 5/ 9-5 08
PDF
/
Buying Options
Total Price: USD $4.26
Unit Price: USD $4.26384
≥1 USD $4.26384
≥10 USD $4.02249
≥100 USD $3.7948
≥500 USD $3.58
≥1000 USD $3.37736
Inventory: 1160
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 29.000003g
Technical
Packaging Bulk
Published 2003
Series COMBICON SMKDSP
Feature Interlocking (Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Screw
Color Green
Number of Rows 1
Voltage - Rated 400V
Pitch 0.200 5.08mm
Current Rating 17.5A
Wire Gauge 14-30 AWG
Voltage 300V
Number of Levels 1
Current 15A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 14 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 9
Safety Approval UL
Mating Orientation 35° (145°) Angle with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M3
Number of Positions Per Level 9
Dimensions
Height 18.8mm
Length 13.4mm
Width 45.72mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
