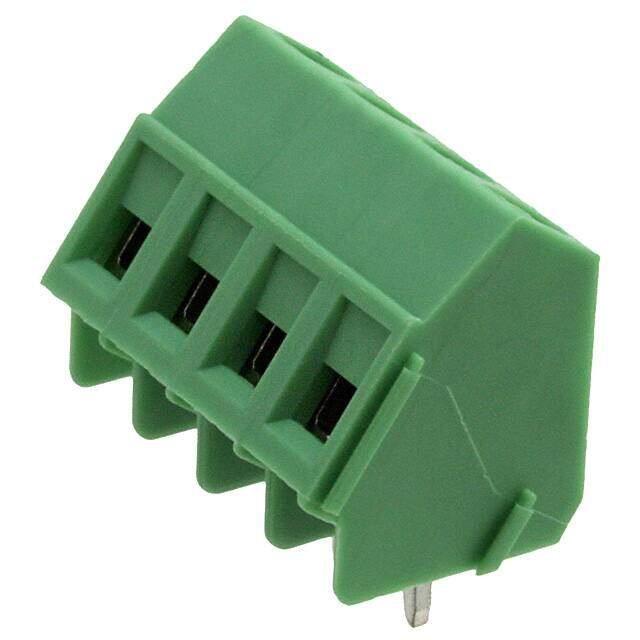

1733596
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
TERMINAL BLOCK, WIRE TO BRD, 4POS, 14AWG
PDF
/
Buying Options
Total Price: USD $2.21
Unit Price: USD $2.2088
≥1 USD $2.2088
≥10 USD $2.11288
≥100 USD $2.021184
≥500 USD $1.966096
≥1000 USD $1.83744
≥3000 USD $1.690445
Inventory: 445
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 6.160011g
Technical
Packaging Bulk
Published 2001
Series COMBICON SMKDSP
Feature Interlocking (Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Color Green
Number of Rows 1
Voltage - Rated 400V
Pitch 0.200 5.08mm
Depth 13.4mm
Current Rating 17.5A
Voltage - Rated AC 250V
Lead Pitch 5.08mm
Number of Contacts 4
Wire Gauge 14-30 AWG
Voltage 300V
Max Supply Voltage 250V
Max Current Rating 22A
Number of Levels 1
Current 15A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 14 AWG
Wire/Cable Gauge 26 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 4
Safety Approval CB; CCA; CSA; CUL; EAC; SEV
Mating Orientation 35° (145°) Angle with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M3
Dimensions
Height 18.8mm
Length 13.4mm
Width 20.32mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
