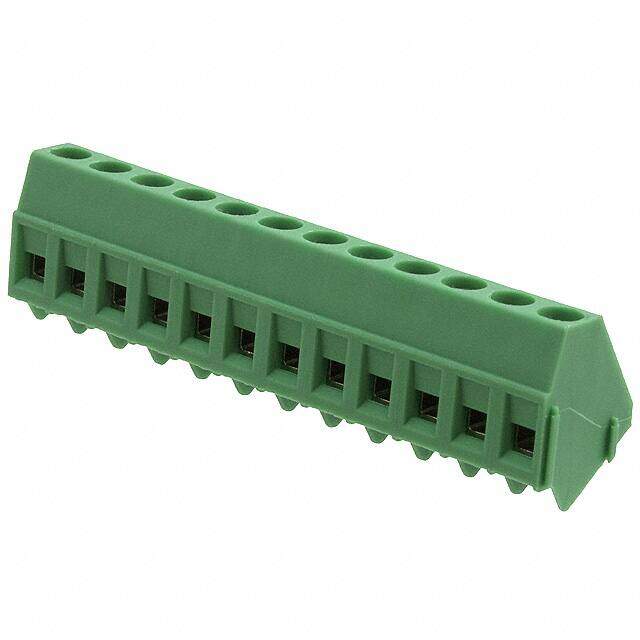

1733512
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
Fixed Terminal Blocks SMKDSP 1 5/12
PDF
/
Buying Options
Total Price: USD $5.22
Unit Price: USD $5.2184
≥1 USD $5.2184
Inventory: 90
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 60mm
Length 60mm
Height 18.8mm
Technical
Screw Thread M3
Wire Termination Screw - Rising Cage Clamp
Mating Orientation 35° (145°) Angle with Board
Safety Approval UL
Number of Ways 12
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Decks 1
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 30 AWG
Current 15A
Number of Levels 1
Max Current Rating 22A
Max Supply Voltage 250V
Voltage 300V
Wire Gauge 14-30 AWG
Number of Contacts 12
Current Rating 17.5A
Depth 13.4mm
Pitch 0.197 5.00mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 400V
Number of Rows 1
Color Green
Connector Type Screw
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Interlocking (Side)
Series COMBICON SMKDSP
Published 2010
Packaging Bulk
Physical
Weight 1.360777kg
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Material Tin
Supply Chain
Factory Lead Time 4 Weeks
