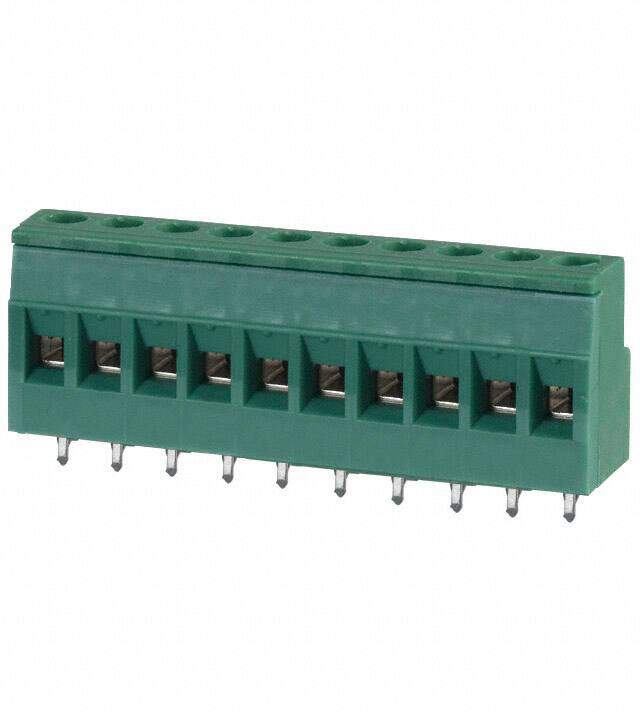

1730696
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
TERM BLK 10P SIDE ENT 5.08MM PCB
PDF
/
Inventory: 1197
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Dimensions
Length 11.62mm
Technical
Wire Cross Section 2.5 mm2
Screw Thread M3
Wire Termination Screw - Rising Cage Clamp
Mating Orientation Horizontal with Board
Safety Approval UL; CSA
Number of Ways 10
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Terminal and Terminal Block Type MODULAR TERMINAL BLOCK
Number of Decks 1
Wire Gauge (Min) 30 AWG
Wire Gauge (Max) 30 AWG
Current 10A
Number of Levels 1
Max Current Rating 12A
Max Supply Voltage 250V
Voltage 300V
Wire Gauge 12-30 AWG
Number of Contacts 10
Current Rating 12A
Reach Compliance Code unknown
Depth 11.62mm
Orientation Straight
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Additional Feature POLYAMIDE, 94V-0
Voltage - Rated 400V
Number of Rows 1
Color Green
Connector Type Screw
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Last Time Buy
Pbfree Code yes
Series COMBICON EMKDS
Published 2003
Packaging Bulk
Physical
Weight 20.999994g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
