1730654
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

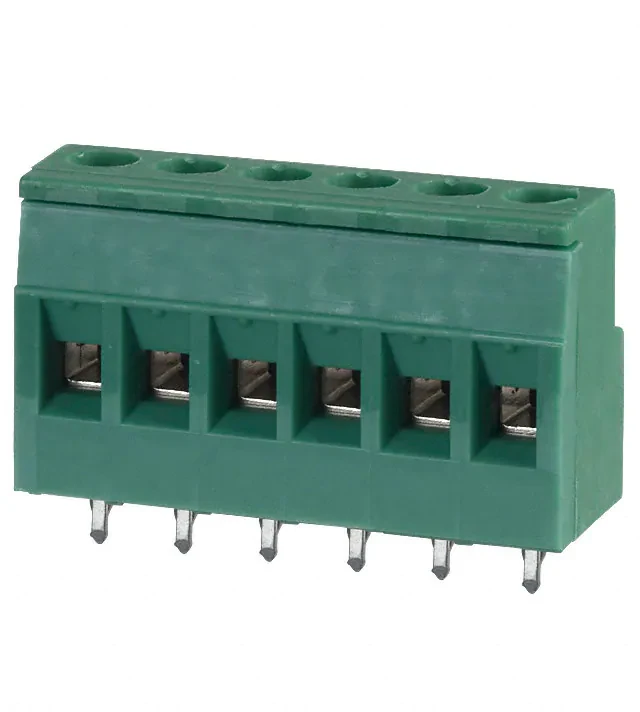

TERM BLK 6P SIDE ENT 5.08MM PCB
PDF
/
Inventory: 1183
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 20.999994g
Technical
Packaging Bulk
Published 2010
Series COMBICON EMKDS
Pbfree Code yes
Part Status Last Time Buy
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Screw
Color Green
Number of Rows 1
Voltage - Rated 400V
Additional Feature POLYAMIDE, 94V-0
Pitch 0.200 5.08mm
Orientation Straight
Depth 11.62mm
Current Rating 12A
Number of Contacts 6
Wire Gauge 12-30 AWG
Voltage 300V
Max Supply Voltage 250V
Max Current Rating 12A
Number of Levels 1
Current 10A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 30 AWG
Number of Decks 1
Terminal and Terminal Block Type MODULAR TERMINAL BLOCK
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 6
Safety Approval UL; CSA
Mating Orientation Horizontal with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M3
Wire Cross Section 2.5 mm2
Dimensions
Height 21.8mm
Length 31.66mm
Width 31.66mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
