1730531
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

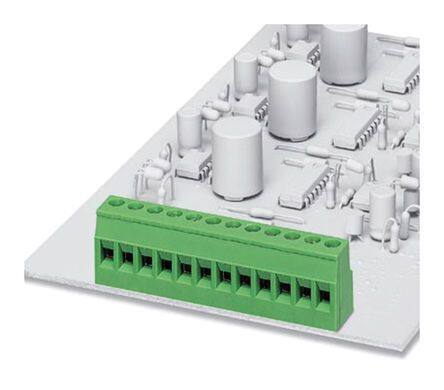

Fixed Terminal Blocks MKDSD 2.5/ 5-5.08
PDF
/
Buying Options
Total Price: USD $2.94
Unit Price: USD $2.9392
≥1 USD $2.9392
≥10 USD $2.8556
≥100 USD $2.66904
≥500 USD $2.455552
≥1000 USD $2.409546
Inventory: 150
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 11.180003g
Technical
Packaging Bulk
Published 2010
Series COMBICON MKDSD
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Color Green
Number of Rows 1
Voltage - Rated 400V
Additional Feature PA, 94V-0
Pitch 0.200 5.08mm
Orientation Straight
Depth 11.62mm
Current Rating 24A
Wire Gauge 12-30 AWG
Voltage 300V
Max Supply Voltage 250V
Max Current Rating 24A
Number of Levels 1
Current 20A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 5
Safety Approval UL
Mating Orientation Horizontal with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M3
Number of Positions Per Level 5
Dimensions
Height 21.7mm
Length 26.58mm
Width 26.58mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
