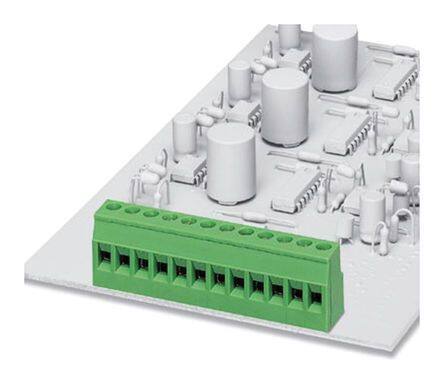

1730201 image
Favorite
1730201 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description Fixed Terminal Blocks MKDSP 1 5/10-5 08
PDF
/
Inventory: 1373
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant

Dimensions

Width 55.88mm
Length 11.15mm
Height 17.3mm

Technical

Number of Positions Per Level 10
Screw Thread M3
Wire Termination Screw - Rising Cage Clamp
Mating Orientation Horizontal with Board
Safety Approval UL
Number of Ways 10
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Decks 1
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 30 AWG
Current 10A
Number of Levels 1
Voltage 300V
Wire Gauge 14-30 AWG
Current Rating 17.5A
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 400V
Number of Rows 1
Color Green
Connector Type Screw
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Interlocking (Side)
Series COMBICON MKDSP
Published 2011
Packaging Bulk

Physical

Weight 29.000003g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Material Tin

Supply Chain

Factory Lead Time 4 Weeks
