1730104
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

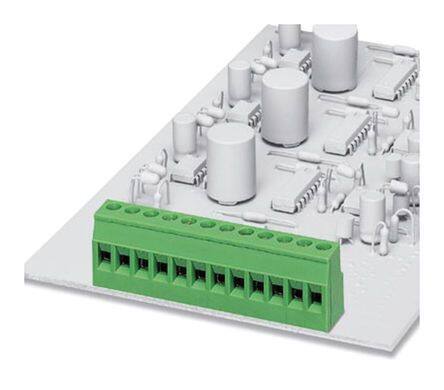

Fixed Terminal Blocks MKDSP 1.5/11
PDF
/
Inventory: 7744
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Number of Positions Per Level 11
Screw Thread M3
Wire Termination Screw - Rising Cage Clamp
Mating Orientation Horizontal with Board
Safety Approval UL
Number of Ways 11
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Decks 1
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 30 AWG
Current 10A
Number of Levels 1
Voltage 300V
Wire Gauge 14-30 AWG
Current Rating 17.5A
Pitch 0.197 5.00mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 400V
Number of Rows 1
Color Green
Connector Type Screw
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Interlocking (Side)
Series COMBICON MKDSP
Published 2011
Packaging Bulk
Physical
Weight 1.050066kg
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 6 Weeks
