1729209
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

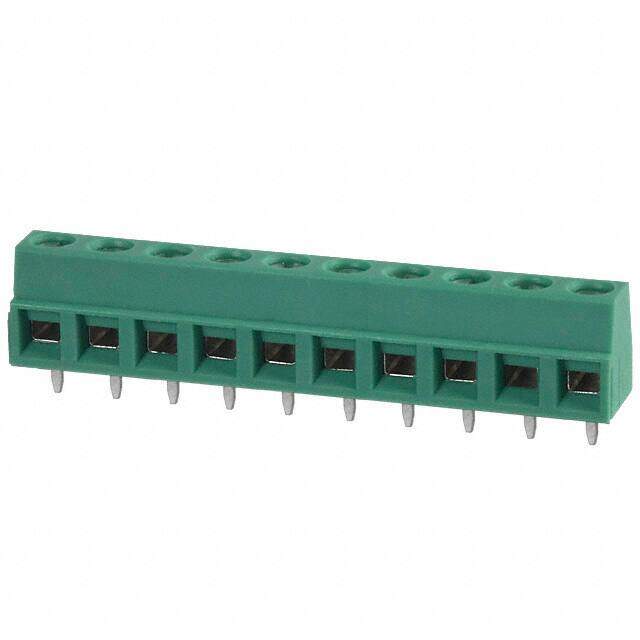

TERM BLK 10P SIDE ENT 5.08MM PCB
PDF
/
Buying Options
Total Price: USD $4.25
Unit Price: USD $4.2504
≥1 USD $4.2504
≥10 USD $4.06824
≥100 USD $3.957536
≥500 USD $3.69864
≥1000 USD $3.402749
≥3000 USD $3.339054
Inventory: 855
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 10mm
Length 8.1mm
Height 13.5mm
Technical
Stripping Length 6mm
Screw Thread M3
Wire Termination Screw - Rising Cage Clamp
Mating Orientation Horizontal with Board
Safety Approval CB; CCA; CSA; CUL; EAC; GL
Number of Ways 10
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Decks 1
Wire/Cable Gauge 16 AWG
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 30 AWG
Current 10A
Number of Levels 1
Max Current Rating 13.5A
Max Supply Voltage 250V
Voltage 300V
Wire Gauge 14-30 AWG
Number of Contacts 10
Approval Agency CB, CSA, UL, cULus
Current Rating 13.5A
Depth 8.1mm
Orientation Straight
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Additional Feature UL 94V-0, PA, SAFETY APPROVAL: RS; SEV; UL
Voltage - Rated 400V
Number of Rows 1
Color Green
Connector Type Screw
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Interlocking (Side)
Series COMBICON MKDSN
Published 2010
Packaging Bulk
Physical
Weight 9.739989g
Housing Material Polyamide (PA), Nylon
Insulation Material Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Material Tin
Supply Chain
Factory Lead Time 7 Weeks
