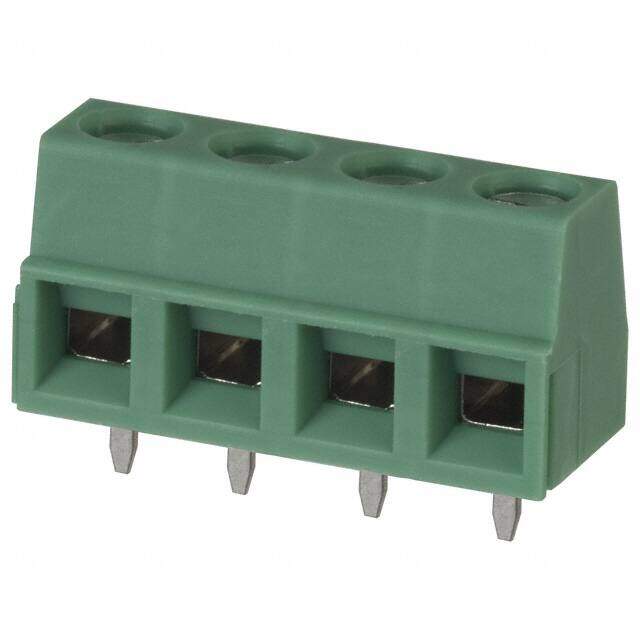

1729144
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
TERM BLK 4P SIDE ENT 5.08MM PCB
PDF
/
Buying Options
Total Price: USD $1.37
Unit Price: USD $1.3728
≥1 USD $1.3728
Inventory: 1121
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Tin
Mount Through Hole
Mounting Type Through Hole
Insulation Material Nylon
Housing Material Polyamide (PA), Nylon
Weight 3.679995g
Technical
Packaging Bulk
Published 2001
Series COMBICON MKDSN
Feature Interlocking (Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Max Operating Temperature 100°C
Min Operating Temperature -20°C
Color Green
Number of Rows 1
Voltage - Rated 400V
Pitch 0.200 5.08mm
Orientation Straight
Depth 8.1mm
Current Rating 13.5A
Voltage - Rated AC 250V
Approval Agency CB, CSA, UL, cULus
Lead Pitch 5.08mm
Number of Contacts 4
Wire Gauge 14-30 AWG
Voltage 300V
Max Supply Voltage 250V
Max Current Rating 13.5A
Number of Levels 1
Current 10A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 26 AWG
Wire/Cable Gauge 16 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 4
Safety Approval CB; CCA; CSA; CUL; EAC; GL
Mating Orientation Horizontal with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M3
Stripping Length 6mm
Test Voltage 4kV
Dimensions
Height 10.15mm
Length 20.32mm
Width 10mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
