1727780
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

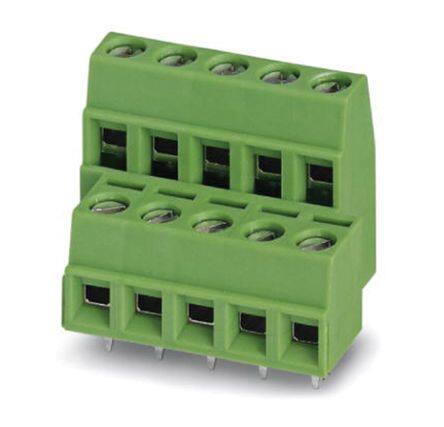

Fixed Terminal Blocks MK3DS 1/ 7-3.81
PDF
/
Buying Options
Total Price: USD $51.98
Unit Price: USD $51.98165
≥1 USD $51.98165
≥200 USD $20.741194
≥500 USD $20.047983
≥1000 USD $19.706629
Inventory: 1105
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 907.18474g
Technical
Packaging Bulk
Published 2011
Series COMBICON MK3DS
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional Feature PA, 94V-0
Pitch 0.150 3.81mm
Orientation Straight
Current Rating 8A
Wire Gauge 16-30 AWG
Voltage 300V
Number of Circuits 21
Max Current Rating 8A
Number of Levels 3
Current 10A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 16 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 7
Safety Approval UL
Mating Orientation Horizontal with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M2
Number of Positions Per Level 7
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
