1727751
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

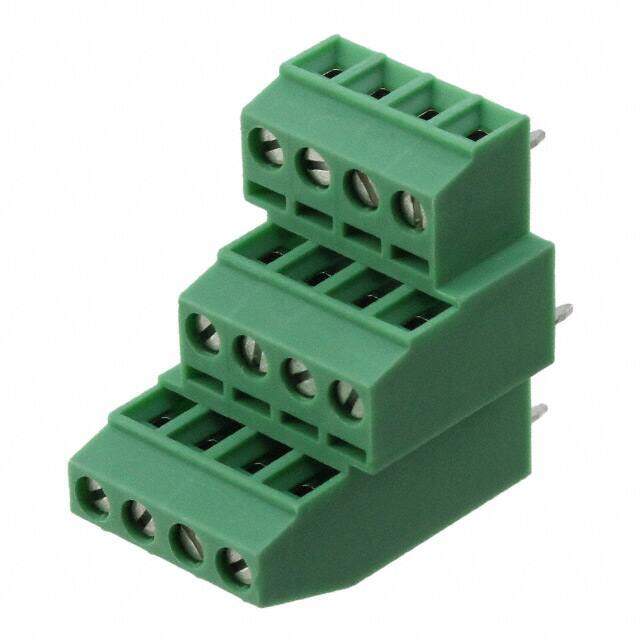

Phoenix Contact MK3DS 1/ 4-3.81, 4 Way 3.81mm Pitch PCB Terminal Block
PDF
/
Buying Options
Total Price: USD $10.74
Unit Price: USD $10.736
≥1 USD $10.736
≥10 USD $10.44032
≥100 USD $9.75744
≥500 USD $8.97688
≥1000 USD $8.8088
Inventory: 94
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Not Applicable
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Technical
Number of Positions Per Level 4
Screw Thread M2
Wire Termination Screw - Rising Cage Clamp
Mating Orientation Horizontal with Board
Safety Approval UL
Number of Ways 4
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Decks 1
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 30 AWG
Current 10A
Number of Levels 3
Max Current Rating 8A
ELV Compliant
Voltage 300V
Wire Gauge 16-30 AWG
Number of Contacts 12
Current Rating 8A
Reach Compliance Code unknown
Orientation Straight
Pitch 0.150 3.81mm
Voltage - Rated 160V
Gender Female
Number of Rows 1
Color Green
Connector Type Screw
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MK3DS
Published 2010
Packaging Bulk
Physical
Weight 1.814369kg
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Contact Material Brass
Supply Chain
Factory Lead Time 4 Weeks
