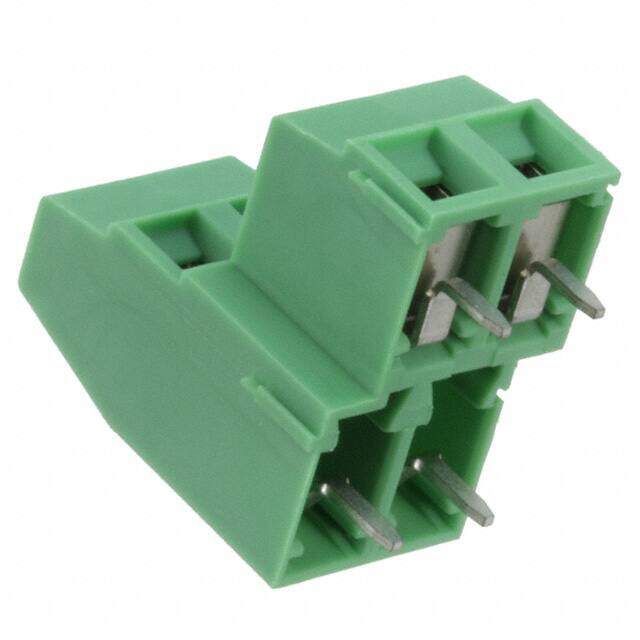

1726040
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
PHOENIX CONTACT 1726040 Wire-To-Board Terminal Block, 2 Ways, 250 V, 13.5 A, 26 AWG, 16 AWG, 1.5 mm
PDF
/
Buying Options
Total Price: USD $2.77
Unit Price: USD $2.772
≥1 USD $2.772
≥10 USD $2.65936
≥100 USD $2.543904
≥500 USD $2.47456
≥1000 USD $2.31264
≥3000 USD $2.127629
Inventory: 982
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 19.1mm
Length 12.7mm
Height 18.3mm
Technical
Test Voltage 4kV
Number of Lines 2
Number of Positions Per Level 2
Screw Thread M3
Wire Termination Screw - Rising Cage Clamp
Mating Orientation Horizontal with Board
Positions Per Level 2
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Poles 4
Wire/Cable Gauge 26 AWG
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 26 AWG
Current 10A
Number of Levels 2
Max Current Rating 13.5A
Max Supply Voltage 250V
Number of Circuits 4
Voltage 300V
Wire Gauge 14-30 AWG
Housing Color Green
Number of Contacts 2
Lead Pitch 5.08mm
Voltage - Rated AC 250V
Current Rating 13.5A
Depth 18.3mm
Orientation Straight
Pitch 0.200 5.08mm
Voltage - Rated 250V
Number of Rows 2
Color Green
Min Operating Temperature -20°C
Max Operating Temperature 100°C
Number of Positions 2
Connector Type Screw
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Interlocking (Side)
Series COMBICON MKKDSN
Published 2001
Packaging Bulk
Physical
Weight 28.349523g
Housing Material Polyamide (PA), Nylon
Number of Pins 4
Mounting Type Through Hole
Mount Through Hole
Contact Material Tin
Supply Chain
Factory Lead Time 4 Weeks
