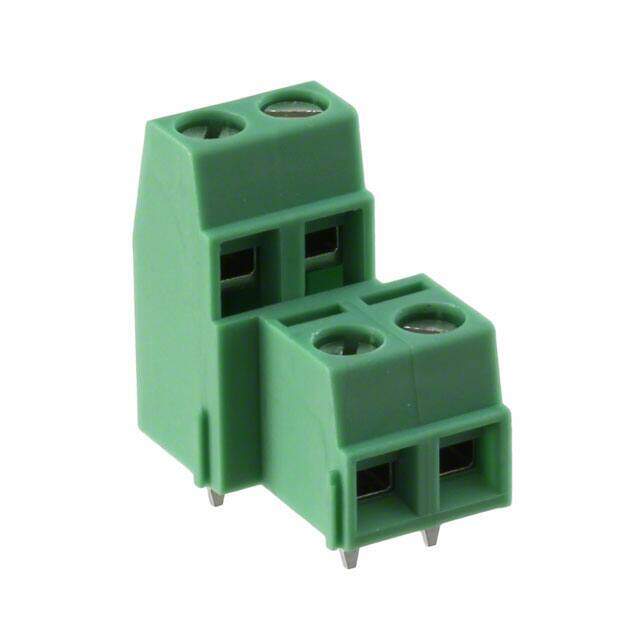

1726037
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
Fixed Terminal Blocks MKKDSN 1 5/ 2
PDF
/
Buying Options
Total Price: USD $2.77
Unit Price: USD $2.772
≥1 USD $2.772
≥10 USD $2.65936
≥100 USD $2.543904
≥500 USD $2.47456
≥1000 USD $2.31264
≥3000 USD $2.127629
Inventory: 332
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 4.796994g
Technical
Packaging Bulk
Published 2011
Series COMBICON MKKDSN
Feature Interlocking (Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Color Green
Voltage - Rated 400V
Pitch 5mm
Orientation Straight
Current Rating 13.5A
Number of Contacts 4
Wire Gauge 14-30 AWG
Voltage 300V
Max Current Rating 13.5A
Number of Levels 2
Current 10A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 14 AWG
Number of Decks 2
Terminal and Terminal Block Type MODULAR TERMINAL BLOCK
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 2
Safety Approval UL; CSA
Mating Orientation Horizontal with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M3
Number of Positions Per Level 1
Dimensions
Height 18.3mm
Length 10mm
Width 22.6mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
