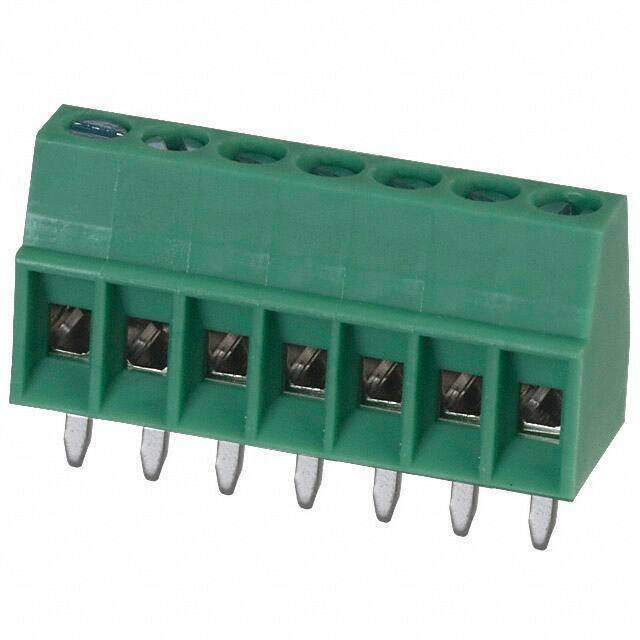

1725708
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
TERM BLK 7P SIDE ENT 2.54MM PCB
PDF
/
Buying Options
Total Price: USD $4.44
Unit Price: USD $4.4352
≥1 USD $4.4352
≥10 USD $4.24248
≥100 USD $4.127024
≥500 USD $3.85704
≥1000 USD $3.548477
≥3000 USD $3.482054
Inventory: 2588
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Tin
Mount Through Hole
Mounting Type Through Hole
Insulation Material Nylon
Housing Material Polyamide (PA), Nylon
Weight 2.069997g
Technical
Packaging Bulk
Published 2010
Series COMBICON MPT
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Max Operating Temperature 120°C
Min Operating Temperature -40°C
Color Green
Voltage - Rated 160V
Additional Feature POLYAMIDE, 94V-0
HTS Code 8536.69.40.40
Pitch 0.100 2.54mm
Orientation Straight
Reach Compliance Code not_compliant
Current Rating 6A
Approval Agency CSA, UL, cULus
Number of Contacts 7
Wire Gauge 20-30 AWG
Voltage 125V
Max Current Rating 6A
Number of Levels 1
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 26 AWG
Terminal and Terminal Block Type MODULAR TERMINAL BLOCK
Torque - Screw 0.12-0.15 Nm (1.0-1.3 Lb-In)
Number of Ways 7
Safety Approval UL; CSA
Mating Orientation Horizontal with Board
Wire Termination Screw
Screw Thread M1.6
Stripping Length 4.5mm
Wire Cross Section 0.5 mm2
Dimensions
Height 17mm
Length 6.2mm
Width 18.24mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
