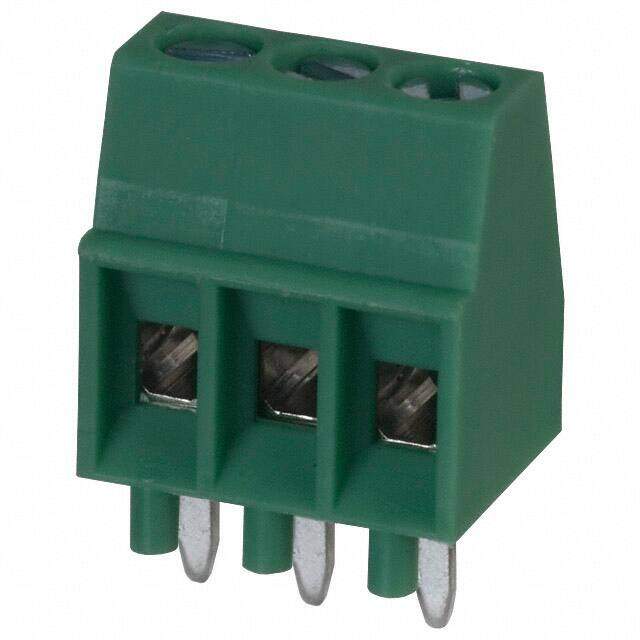

1725669
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
TERM BLK 3P SIDE ENT 2.54MM PCB
PDF
/
Buying Options
Total Price: USD $1.53
Unit Price: USD $1.5312
≥1 USD $1.5312
Inventory: 1151
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Tin
Mount Through Hole
Mounting Type Through Hole
Insulation Material Nylon
Housing Material Polyamide (PA), Nylon
Weight 613.993972mg
Technical
Packaging Bulk
Published 2005
Series COMBICON MPT
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type PCB, Screw, Terminal Block
Max Operating Temperature 100°C
Min Operating Temperature -20°C
Color Green
Voltage - Rated 125V
Additional Feature POLYAMIDE, 94V-0
Pitch 0.100 2.54mm
Orientation Straight
Depth 6.2mm
Current Rating 6A
Voltage - Rated AC 63V
Approval Agency CSA, UL, cULus
Lead Pitch 2.54mm
Number of Contacts 3
Wire Gauge 20-30 AWG
Max Supply Voltage 63V
Max Current Rating 6A
Number of Levels 1
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 26 AWG
Wire/Cable Gauge 26 AWG
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 0.12-0.15 Nm (1.0-1.3 Lb-In)
Number of Ways 3
Safety Approval UL; CSA
Mating Orientation Horizontal with Board
Wire Termination Screw
Screw Thread M1.6
Stripping Length 4.5mm
Wire Cross Section 0.5 mm2
Test Voltage 1.5kV
Dimensions
Height 8.08mm
Length 6.2mm
Width 13mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
