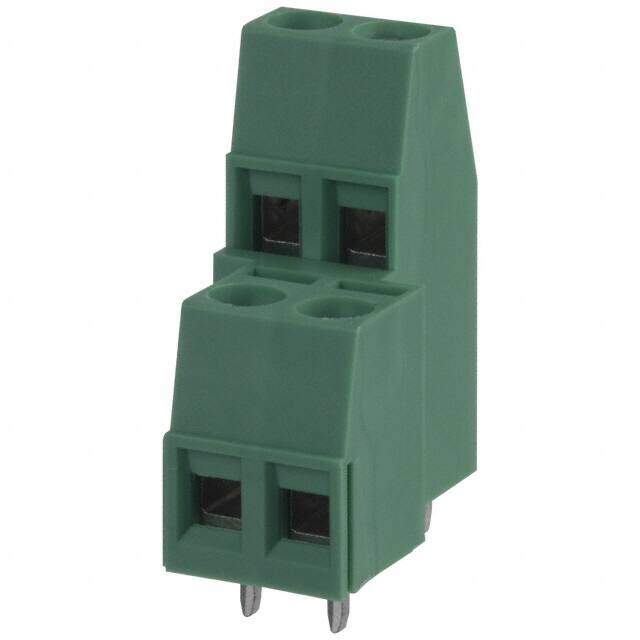

1725012
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
TERM BLK 2POS SIDE ENTRY 5MM PCB
PDF
/
Buying Options
Total Price: USD $2.43
Unit Price: USD $2.4288
≥1 USD $2.4288
≥10 USD $2.32584
≥100 USD $2.262656
≥500 USD $2.11464
≥1000 USD $1.945469
≥3000 USD $1.909054
Inventory: 1817
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Tin
Mount Through Hole
Mounting Type Through Hole
Insulation Material Nylon
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 7.019994g
Technical
Packaging Bulk
Published 2010
Series COMBICON MKKDS
Feature Interlocking (Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Color Green
Number of Rows 2
Gender Male
Voltage - Rated 400V
Pitch 0.197 5.00mm
Orientation Straight
Depth 21.4mm
Reach Compliance Code unknown
Current Rating 17.5A
Approval Agency CSA, UL
Number of Contacts 4
Wire Gauge 14-30 AWG
Voltage 300V
Max Supply Voltage 250V
Max Current Rating 22A
Current 10A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 14 AWG
Number of Decks 2
Terminal and Terminal Block Type MODULAR TERMINAL BLOCK
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 2
Safety Approval UL; CSA
Mating Orientation Horizontal with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M3
Stripping Length 7mm
Dimensions
Height 21.4mm
Length 12.5mm
Width 21.4mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
