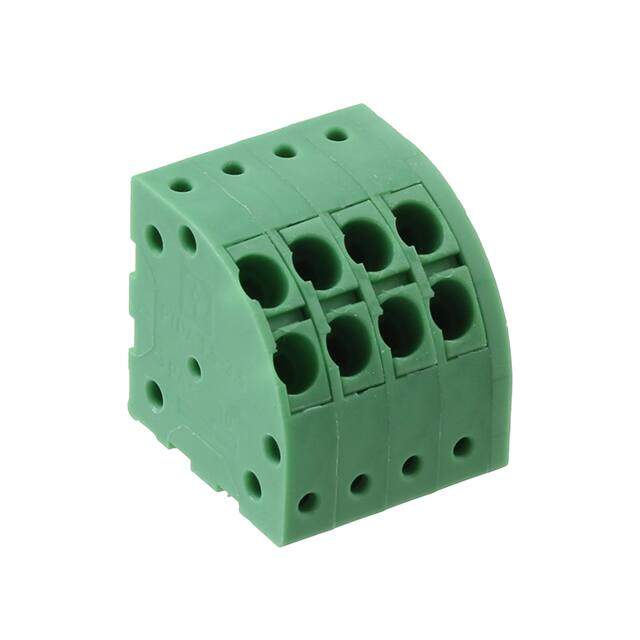

1724938 image
Favorite
1724938 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description Fixed Terminal Blocks PTDA 1.5/ 4-3.5 4P 3.5MM FIXED
PDF
/
Buying Options
Total Price: USD $1.25
Unit Price: USD $1.2496
≥1 USD $1.2496
Inventory: 789
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 19.5mm
Length 15.4mm
Height 16mm

Technical

Fastening Method SPRING LOADED
Number of Positions Per Level 4
Wire Termination Screwless - Leg Spring, Push-In Spring
Mating Orientation 45° (135°) Angle with Board
Safety Approval UL
Number of Ways 4
Positions Per Level 4
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Decks 1
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 24 AWG
Current 12A
Number of Levels 1
Max Current Rating 10A
Max Supply Voltage 300V
Wire Gauge 16-24 AWG
Approval Agency CB, UL, VDE
Current Rating 13.5A
Depth 16mm
Pitch 0.138 3.50mm
Voltage - Rated 200V
Number of Rows 1
Color Green
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON PTDA
Published 2010
Packaging Bulk

Physical

Weight 4.77199g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 4 Weeks
