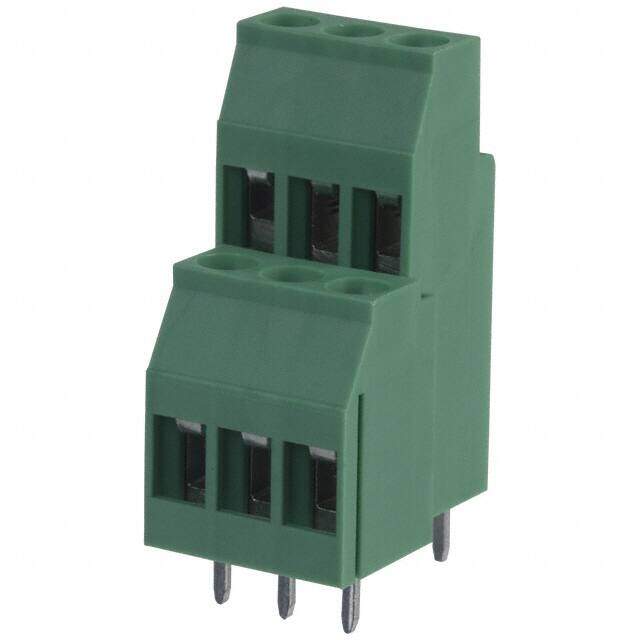

1721731
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
TERM BLK 3P SIDE ENT 5.08MM PCB
PDF
/
Buying Options
Total Price: USD $5.72
Unit Price: USD $5.72
≥1 USD $5.72
≥10 USD $5.56776
≥100 USD $5.20344
≥500 USD $4.7872
≥1000 USD $4.697546
Inventory: 1153
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Tin
Mount Through Hole
Mounting Type Through Hole
Number of Pins 6
Insulation Material Nylon
Housing Material Polyamide (PA), Nylon
Weight 1.360777kg
Technical
Packaging Bulk
Published 2001
Series COMBICON MKKDS
Feature Interlocking (Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Screw
Color Green
Number of Rows 1
Voltage - Rated 400V
Additional Feature PA, 94V-0
Pitch 0.200 5.08mm
Orientation Straight
Depth 22.3mm
Current Rating 22A
Voltage - Rated AC 250V
Approval Agency CSA, UL
Lead Pitch 5.08mm
Wire Gauge 12-30 AWG
Voltage 300V
Max Supply Voltage 250V
Max Current Rating 24A
Number of Levels 2
Current 15A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Wire/Cable Gauge 30 AWG
Number of Poles 3
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 3
Safety Approval UL
Mating Orientation Horizontal with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M3
Stripping Length 8mm
Dimensions
Height 22.3mm
Length 17.78mm
Width 36.5mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
