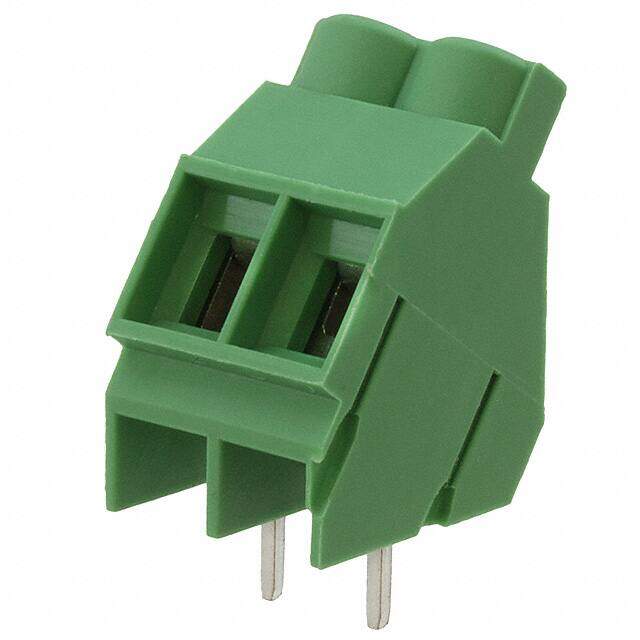

1720033
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
Conn PC Terminal Block 2 POS 6.35mm Solder Thru-Hole 32A Cardboard
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 5.850009g
Technical
Packaging Bulk
Published 2011
Series COMBICON SMKDS
Feature Interlocking (Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Color Green
Voltage - Rated 630V
HTS Code 8536.90.40.00
Pitch 0.250 6.35mm
Depth 18.5mm
Current Rating 32A
Number of Contacts 2
Wire Gauge 10-30 AWG
Voltage 300V
Max Supply Voltage 500V
Max Current Rating 32A
Number of Levels 1
Current 30A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 10 AWG
Terminal and Terminal Block Type MODULAR TERMINAL BLOCK
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 2
Safety Approval UL; CSA
Mating Orientation 35° (145°) Angle with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M3
Dimensions
Height 21.7mm
Length 12.7mm
Width 26.5mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
