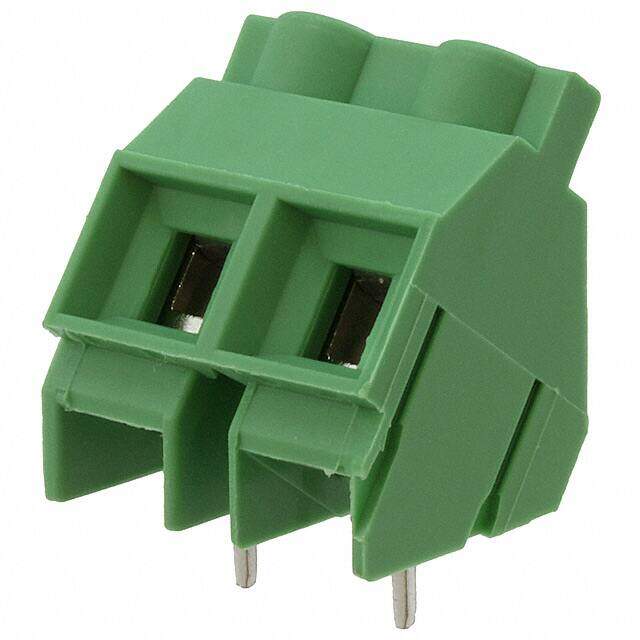

1720017 image
Favorite
1720017 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description Conn Terminal Blocks 2 POS 9.52mm Solder Thru-Hole 32A
PDF
/
Buying Options
Total Price: USD $1.21
Unit Price: USD $1.2056
≥1 USD $1.2056
Inventory: 239
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Contact Material Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 2.100133kg

Technical

Packaging Bulk
Published 2003
Series COMBICON SMKDS
Feature Interlocking (Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Color Green
Number of Rows 1
Voltage - Rated 690V
HTS Code 8536.69.40.40
Pitch 0.375 9.53mm
Depth 18.5mm
Current Rating 32A
Number of Contacts 2
Wire Gauge 10-30 AWG
Voltage 300V
Max Supply Voltage 690V
Max Current Rating 32A
Number of Levels 1
Current 30A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 24 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 2
Safety Approval UL
Mating Orientation 35° (145°) Angle with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M3

Dimensions

Height 19.04mm
Length 19.04mm
Width 26.5mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
