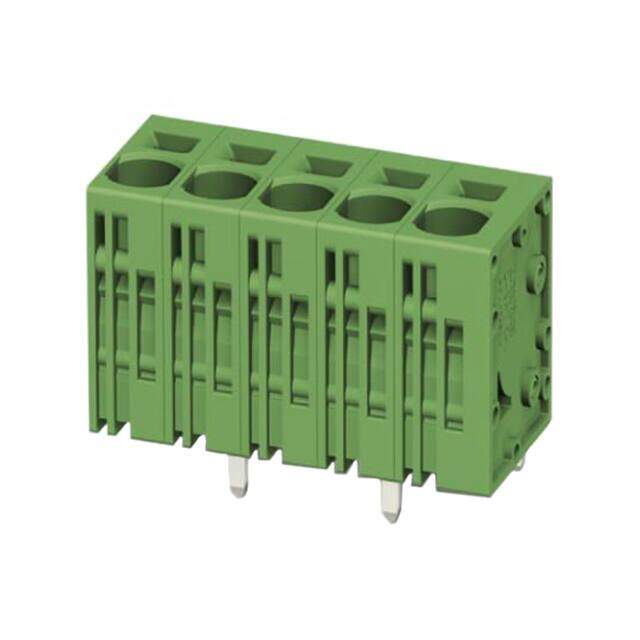

1719341
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
Conn PC Terminal Block F 5 POS 7.5mm Solder ST Thru-Hole 41A
PDF
/
Buying Options
Total Price: USD $10.16
Unit Price: USD $10.164
≥1 USD $10.164
≥10 USD $9.88944
≥100 USD $9.24264
≥500 USD $8.503264
≥1000 USD $7.856253
≥3000 USD $7.486565
Inventory: 74
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 453.59237g
Technical
Packaging Bulk
Published 2011
Series COMBICON SPT
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Number of Positions 5
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 1kV
Additional Feature PA, UL 94V0
Pitch 0.295 7.50mm
Orientation Straight
Depth 18.5mm
Current Rating 41A
Wire Gauge 8-24 AWG
Voltage 600V
Max Supply Voltage 800V
Max Current Rating 41A
Number of Levels 1
Current 35A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 24 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Ways 5
Safety Approval UL
Mating Orientation Vertical with Board
Wire Termination Screwless - Spring Cage, Tension Clamp
Wire Cross Section 6 mm2
Fastening Method SPRING LOADED
Compliance
RoHS Status RoHS Compliant
