1719325
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

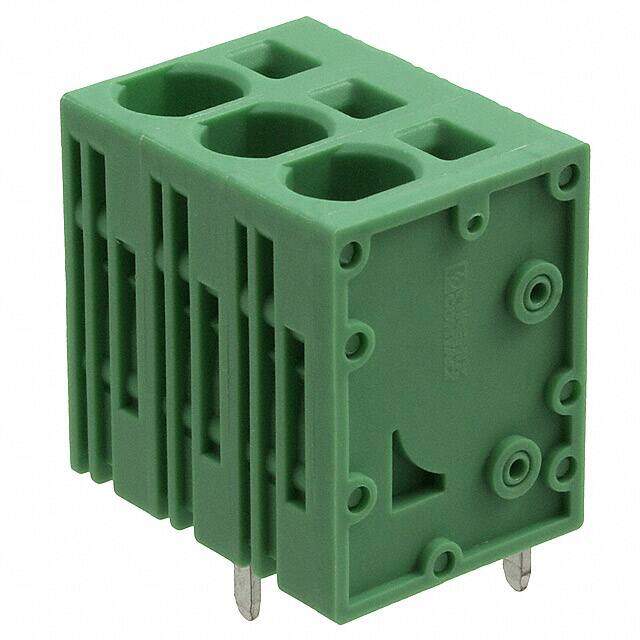

Fixed Terminal Blocks 41 A 800 V 3-pos GRN PC terminal block
PDF
/
Buying Options
Total Price: USD $6.08
Unit Price: USD $6.0808
≥1 USD $6.0808
≥10 USD $5.91536
≥100 USD $5.52816
≥500 USD $5.08596
≥1000 USD $4.698954
≥3000 USD $4.477827
Inventory: 426
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Tin
Mount Through Hole
Mounting Type Through Hole
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 749.788188g
Technical
Packaging Bulk
Published 2012
Series COMBICON SPT
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Number of Positions 3
Color Green
Number of Rows 1
Gender Male
Voltage - Rated 1kV
Additional Feature PA, UL 94V0
Pitch 0.295 7.50mm
Orientation Straight
Depth 24.15mm
Current Rating 41A
Approval Agency CB, UL
Wire Gauge 8-24 AWG
Voltage 600V
Number of Levels 1
Current 35A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 8 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Ways 3
Safety Approval UL
Mating Orientation Vertical with Board
Wire Termination Screwless - Spring Cage, Tension Clamp
Stripping Length 15mm
Wire Cross Section 6 mm2
Fastening Method SPRING LOADED
Dimensions
Height 24.3mm
Length 18.5mm
Width 28.75mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
