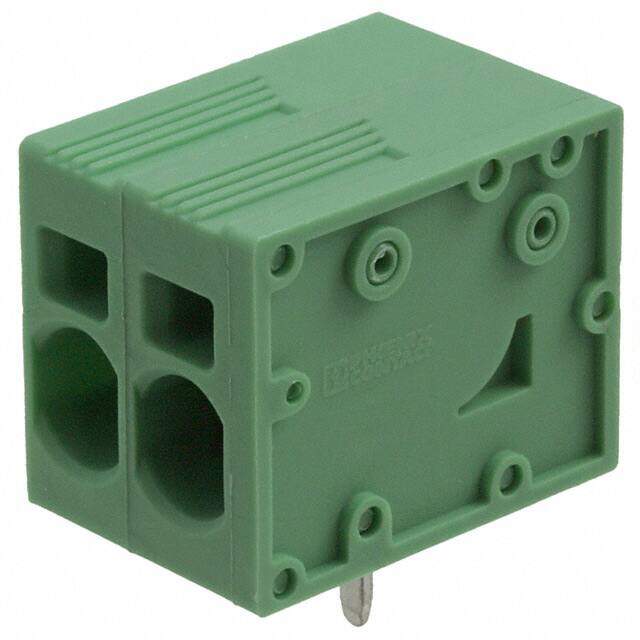

1719192 image
Favorite
1719192 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description Terminal Block Connector; PCB; Spring Cage; 2; 7.5 mm; Front; 24-8 AWG; 41 A; 1000 V
PDF
/
Buying Options
Total Price: USD $4.07
Unit Price: USD $4.0656
≥1 USD $4.0656
≥10 USD $3.95736
≥100 USD $3.69864
≥500 USD $3.402784
≥1000 USD $3.143853
≥3000 USD $2.995907
Inventory: 445
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Height 19.8mm

Technical

Fastening Method SPRING LOADED
Stripping Length 15mm
Wire Termination Screwless - Spring Cage, Tension Clamp
Mating Orientation Horizontal with Board
Safety Approval UL
Number of Ways 2
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Decks 1
Wire Gauge (Min) 8 AWG
Wire Gauge (Max) 24 AWG
Current 35A
Number of Levels 1
Voltage 600V
Wire Gauge 8-24 AWG
Approval Agency CB, UL
Current Rating 41A
Reach Compliance Code unknown
Pitch 0.295 7.50mm
HTS Code 8536.90.40.00
Additional Feature PA, UL 94V-0
Voltage - Rated 1kV
Number of Rows 1
Color Green
Number of Positions 2
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON SPT
Published 2013
Packaging Bulk

Physical

Weight 10.50021kg
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Material Tin

Supply Chain

Factory Lead Time 4 Weeks
