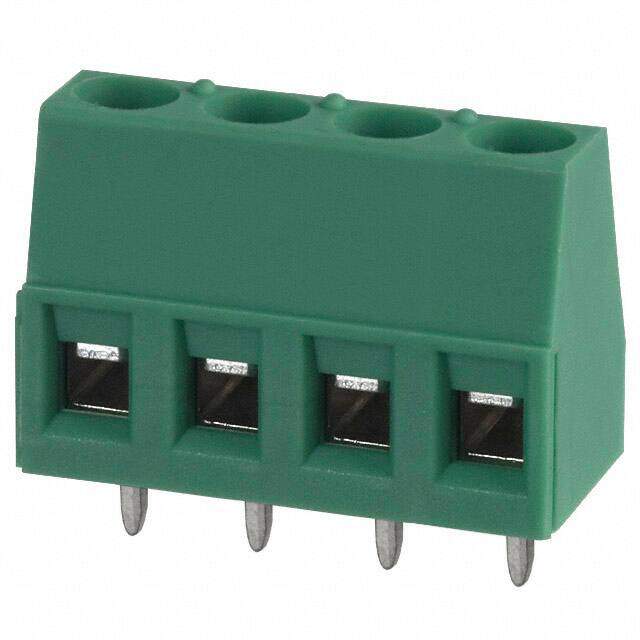

1715747
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
TERM BLK 4P SIDE ENT 5.08MM PCB
PDF
/
Buying Options
Total Price: USD $2.1
Unit Price: USD $2.1032
≥1 USD $2.1032
≥10 USD $2.01256
≥100 USD $1.92544
≥500 USD $1.872816
≥1000 USD $1.75032
≥3000 USD $1.610294
Inventory: 3381
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Tin
Mount Through Hole
Mounting Type Through Hole
Insulation Material Nylon
Housing Material Polyamide (PA), Nylon
Weight 28.349523g
Technical
Packaging Bulk
Published 2001
Series COMBICON MKDS
Feature Interlocking (Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Color Green
Voltage - Rated 400V
Pitch 0.200 5.08mm
Orientation Straight
Depth 9.8mm
Current Rating 17.5A
Voltage - Rated AC 250V
Approval Agency CSA, UL, cULus
Lead Pitch 5.08mm
Number of Contacts 4
Wire Gauge 14-30 AWG
Voltage 300V
Max Supply Voltage 250V
Max Current Rating 22A
Number of Levels 1
Current 15A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 14 AWG
Wire/Cable Gauge 26 AWG
Terminal and Terminal Block Type MODULAR TERMINAL BLOCK
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 4
Safety Approval UL; CSA
Mating Orientation Horizontal with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M3
Stripping Length 7mm
Wire Cross Section 2.5 mm2
Dimensions
Height 13.8mm
Length 15.24mm
Width 13.8mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
