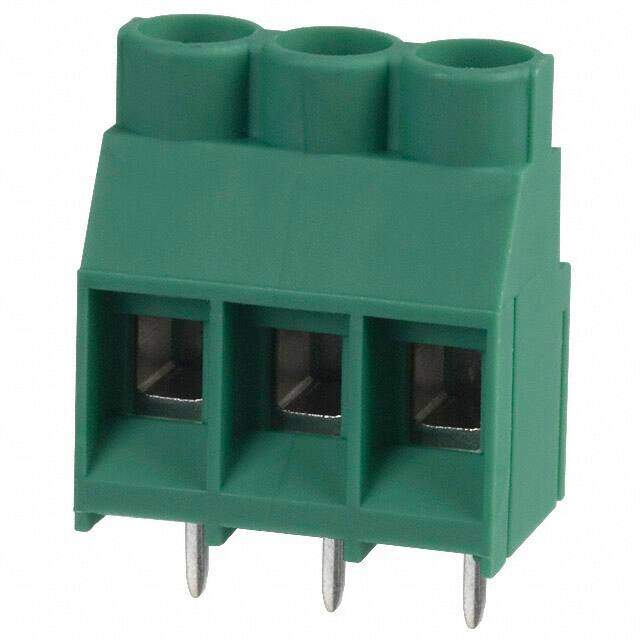

1714968
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
TERM BLK 3P SIDE ENT 6.35MM PCB
PDF
/
Buying Options
Total Price: USD $2.21
Unit Price: USD $2.2088
≥1 USD $2.2088
≥10 USD $2.15248
≥100 USD $2.01168
≥500 USD $1.850728
≥1000 USD $1.709946
≥3000 USD $1.629461
Inventory: 1298
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 26.6mm
Length 19.05mm
Height 19.05mm
Technical
Wire Cross Section 4 mm2
Stripping Length 8mm
Screw Thread M3
Wire Termination Screw - Rising Cage Clamp
Mating Orientation Horizontal with Board
Safety Approval UL
Number of Ways 3
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Decks 1
Wire/Cable Gauge 24 AWG
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 24 AWG
Current 30A
Number of Levels 1
Max Current Rating 32A
Max Supply Voltage 500V
Voltage 300V
Wire Gauge 10-30 AWG
Number of Contacts 3
Lead Pitch 6.35mm
Approval Agency CSA, UL, cULus
Voltage - Rated AC 500V
Current Rating 32A
Depth 12.5mm
Orientation Straight
Pitch 0.250 6.35mm
Additional Feature PA, 94V-0
Voltage - Rated 630V
Gender Male
Number of Rows 1
Color Green
Connector Type PCB, Terminal Block
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Interlocking (Side)
Series COMBICON MKDS
Published 2001
Packaging Bulk
Physical
Weight 8.369998g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Insulation Material Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Material Tin
Supply Chain
Factory Lead Time 7 Weeks
