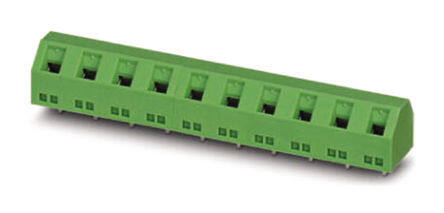

1713888
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
Fixed Terminal Blocks MKDS 5/10- 6,35
PDF
/
Buying Options
Total Price: USD $19.62
Unit Price: USD $19.619978
≥1 USD $19.619978
≥200 USD $7.828823
≥500 USD $7.567556
≥1000 USD $7.437579
Inventory: 1090
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Screw Thread M3
Wire Termination Screw - Rising Cage Clamp
Mating Orientation Horizontal with Board
Positions Per Level 10
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Wire Gauge (Min) 10 AWG
Wire Gauge (Max) 28 AWG
Current 30A
Number of Levels 1
Voltage 300V
Wire Gauge 10-28 AWG
Reach Compliance Code not_compliant
Pitch 0.250 6.35mm
Color Green
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Interlocking (Side)
Series COMBICON MKDS
Published 2011
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 6 Weeks
