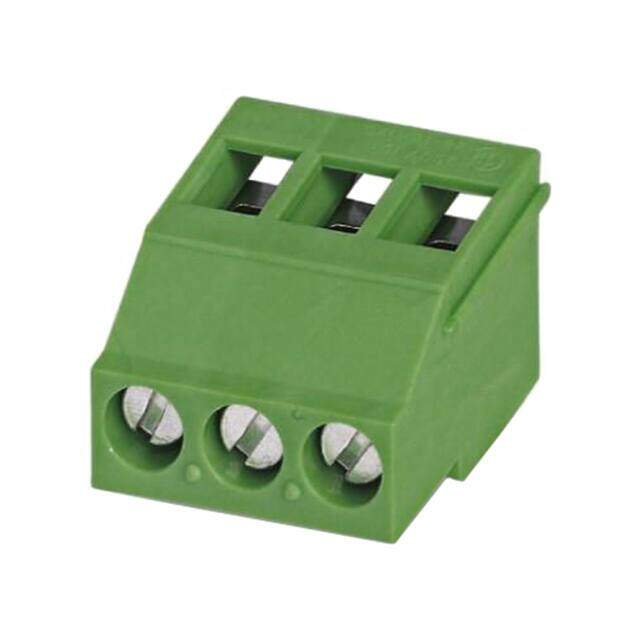

1712038
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
TERM BLK 3POS TOP ENTRY 5MM PCB
PDF
/
Buying Options
Total Price: USD $2.91
Unit Price: USD $2.9128
≥1 USD $2.9128
≥10 USD $2.83448
≥100 USD $2.6488
≥500 USD $2.436896
≥1000 USD $2.251498
≥3000 USD $2.196181
Inventory: 105
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 5.909997g
Technical
Packaging Bulk
Published 2011
Series COMBICON MKDSF
Feature Interlocking (Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Color Green
Number of Rows 1
Voltage - Rated 400V
Additional Feature PA, 94V-0
Pitch 0.197 5.00mm
Orientation Right Angle
Current Rating 24A
Number of Contacts 3
Wire Gauge 12-30 AWG
Voltage 300V
Max Current Rating 24A
Number of Levels 1
Current 15A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 3
Safety Approval UL
Mating Orientation Vertical with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M3
Wire Cross Section 2.5 mm2
Dimensions
Height 18mm
Length 15mm
Width 18mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
