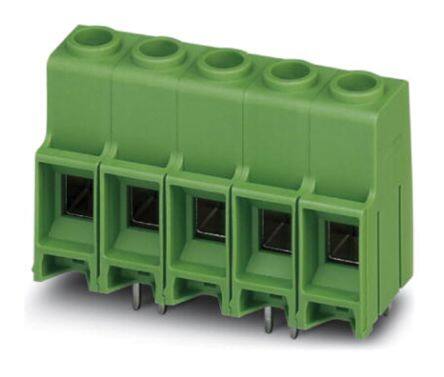

1709733
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
Fixed Terminal Blocks MKDS 10 HV/ 7-ZB-10.16
PDF
/
Buying Options
Total Price: USD $76.64
Unit Price: USD $76.643163
≥1 USD $76.643163
≥200 USD $30.58138
≥500 USD $29.559944
≥1000 USD $29.054477
Inventory: 5190
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Tin
Mount Through Hole
Mounting Type Through Hole
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 56.740011g
Technical
Packaging Bulk
Published 2011
Series COMBICON MKDS
Feature Interlocking (Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Number of Positions 7
Color Green
Number of Rows 1
Voltage - Rated 600V
Additional Feature PA, UL 94V-0
HTS Code 8536.69.40.40
Pitch 0.400 10.16mm
Depth 31mm
Current Rating 76A
Wire Gauge 6-20 AWG
Number of Levels 1
Current 60A
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 6 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 1.2-1.5 Nm (10.6-13.3 Lb-In)
Number of Ways 7
Safety Approval CB; CCA; CUL; GOST; SEV; UL
Mating Orientation Horizontal with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M4
Dimensions
Height 31mm
Length 18.7mm
Width 71.12mm
Compliance
RoHS Status RoHS Compliant
