1709681
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

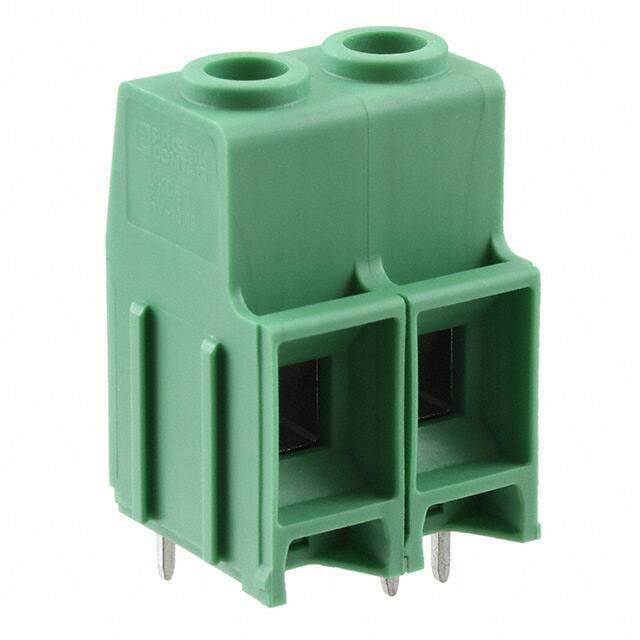

Conn PC Terminal Block 2 POS 10.16mm Solder ST Thru-Hole 76A Cardboard
PDF
/
Buying Options
Total Price: USD $9.05
Unit Price: USD $9.0464
≥1 USD $9.0464
≥10 USD $8.79648
≥100 USD $8.22096
≥500 USD $7.563336
≥1000 USD $6.987834
≥3000 USD $6.659013
Inventory: 367
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Tin
Mount Through Hole
Mounting Type Through Hole
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 16.729989g
Technical
Packaging Bulk
Published 2011
Series COMBICON MKDS
Feature Interlocking (Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Socket
Color Green
Number of Rows 1
Voltage - Rated 1kV
Additional Feature PA, UL 94V-0
HTS Code 8536.69.40.40
Pitch 0.400 10.16mm
Orientation Straight
Depth 18.7mm
Current Rating 76A
Number of Contacts 2
Wire Gauge 6-20 AWG
Voltage 600V
Max Supply Voltage 800V
Max Current Rating 76A
Number of Levels 1
Current 60A
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 20 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 1.2-1.5 Nm (10.6-13.3 Lb-In)
Number of Ways 2
Safety Approval UL
Mating Orientation Horizontal with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M4
Dimensions
Height 20.32mm
Length 20.32mm
Width 35.8mm
Compliance
RoHS Status RoHS Compliant
