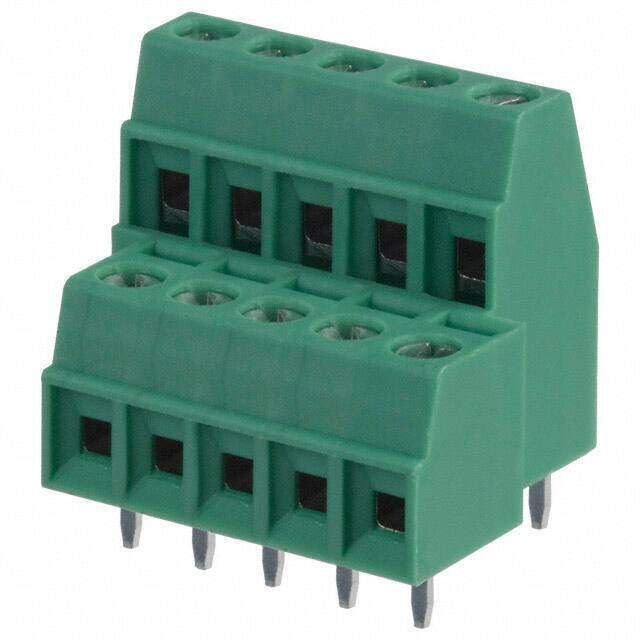

1708055
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
TERM BLK 5P SIDE ENT 3.81MM PCB
PDF
/
Buying Options
Total Price: USD $7.57
Unit Price: USD $7.568
≥1 USD $7.568
≥10 USD $7.36384
≥100 USD $6.88248
≥500 USD $6.331864
≥1000 USD $6.213363
Inventory: 195
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Tin
Mount Through Hole
Mounting Type Through Hole
Insulation Material Nylon
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 2.267962kg
Technical
Packaging Bulk
Published 2010
Series COMBICON MKKDS
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Number of Positions 5
Color Green
Number of Rows 1
Gender Male
Voltage - Rated 200V
Additional Feature PA, 94V-0
Pitch 0.150 3.81mm
Orientation Straight
Depth 16.3mm
Current Rating 8A
Approval Agency CB, CSA, UL, cULus
Number of Contacts 10
Wire Gauge 16-30 AWG
Voltage 300V
Max Supply Voltage 160V
Max Current Rating 10A
Number of Levels 2
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 26 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Positions Per Level 5
Number of Ways 5
Safety Approval UL
Mating Orientation Horizontal with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M2
Stripping Length 5mm
Dimensions
Height 16.2mm
Length 21mm
Width 16.3mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
