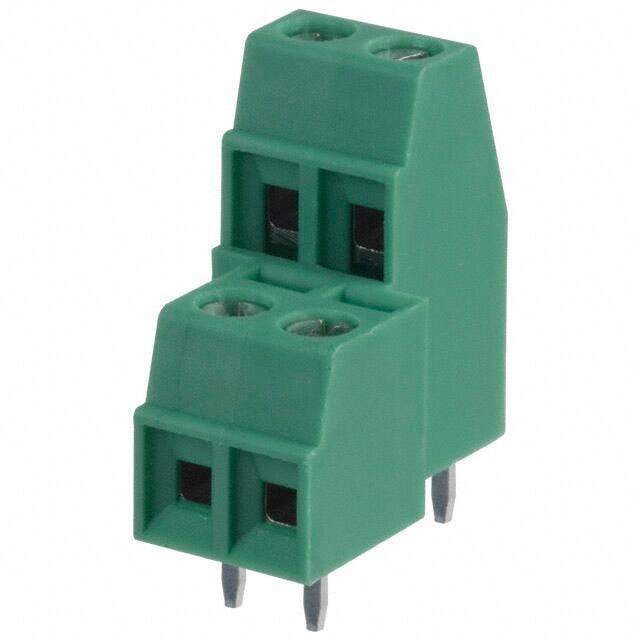

1708026
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
TERM BLK 2P SIDE ENT 3.81MM PCB
PDF
/
Buying Options
Total Price: USD $3.02
Unit Price: USD $3.0184
≥1 USD $3.0184
≥10 USD $2.93216
≥100 USD $2.74032
≥500 USD $2.521112
≥1000 USD $2.473891
Inventory: 463
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Tin
Mount Through Hole
Mounting Type Through Hole
Number of Pins 4
Insulation Material Nylon
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 2.745992g
Technical
Packaging Bulk
Published 2003
Series COMBICON MKKDS
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Number of Positions 2
Color Green
Number of Rows 1
Gender Male
Voltage - Rated 200V
Pitch 0.150 3.81mm
Orientation Straight
Depth 16.2mm
Reach Compliance Code not_compliant
Current Rating 8A
Approval Agency CB, CSA, UL, cULus
Number of Contacts 4
Wire Gauge 16-30 AWG
Voltage 300V
Max Current Rating 10A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 26 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 2
Safety Approval UL
Mating Orientation Horizontal with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M2
Stripping Length 5mm
Dimensions
Height 16.2mm
Length 9.52mm
Width 19.7mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
