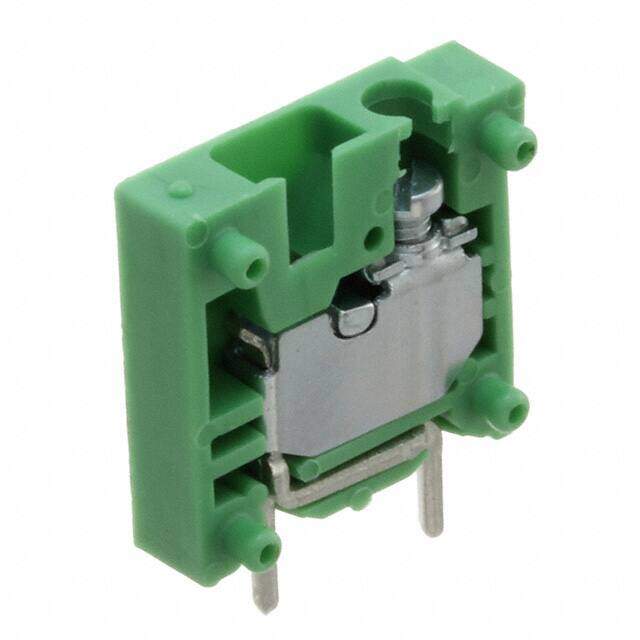

1707742
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
Fixed Terminal Blocks FRONT 1 5-V-3 81
PDF
/
Buying Options
Total Price: USD $1.46
Unit Price: USD $1.4608
≥1 USD $1.4608
Inventory: 77
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 1.709987g
Technical
Packaging Bulk
Published 2011
Series COMBICON FRONT
Feature Interlocking (Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Color Green
Number of Rows 1
Voltage - Rated 320V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Pitch 3.81mm
Reach Compliance Code unknown
Current Rating 17.5A
Wire Gauge 14-30 AWG
Voltage 300V
Current 10A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 14 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 1
Safety Approval UL
Mating Orientation Vertical with Board
Wire Termination Screw - Pressure Clip
Screw Thread M2
Number of Positions Per Level 1
Dimensions
Height 15.9mm
Length 3.81mm
Width 18.5mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
