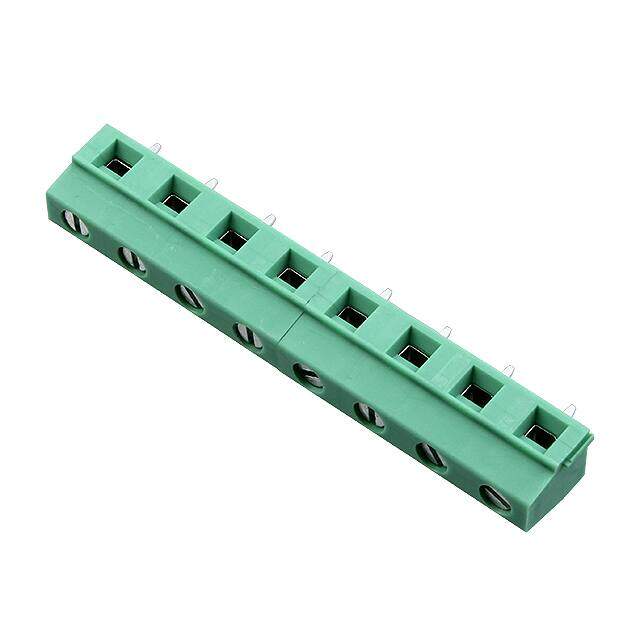

1707085
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
Fixed Terminal Blocks GMKDSN 1 5/ 8-7 62
PDF
/
Buying Options
Total Price: USD $4.67
Unit Price: USD $4.6728
≥1 USD $4.6728
Inventory: 104
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 39.999986g
Technical
Packaging Bulk
Published 2010
Series COMBICON GMKDSN
Feature Interlocking (Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Color Green
Number of Rows 1
Additional Feature PA, 94V-0
Pitch 0.300 7.62mm
Current Rating 16A
Wire Gauge 16-26 AWG
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 16 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 8
Safety Approval UL
Mating Orientation Horizontal with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M3
Number of Positions Per Level 8
Compliance
RoHS Status RoHS Compliant
