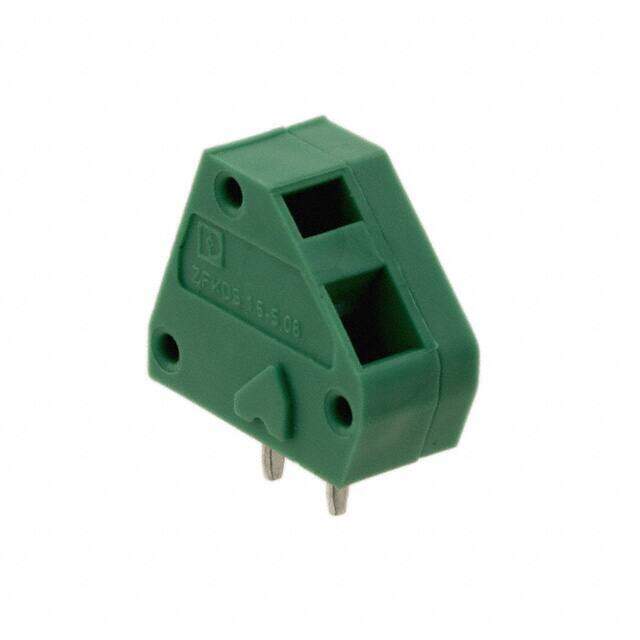

1706727
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
TERM BLOCK 1POS 45DEG PCB
PDF
/
Buying Options
Total Price: USD $0.56
Unit Price: USD $0.5632
≥1 USD $0.5632
≥10 USD $0.53768
≥100 USD $0.514096
≥500 USD $0.500016
≥1000 USD $0.46728
≥3000 USD $0.429898
Inventory: 234
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Tin
Mount Through Hole
Mounting Type Through Hole
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 60.000008g
Technical
Packaging Bulk
Published 2010
Series COMBICON ZFKDSA
Feature Interlocking (Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Max Operating Temperature 100°C
Min Operating Temperature -20°C
Color Green
Number of Rows 2
Gender Male
Voltage - Rated 320V
HTS Code 8536.69.40.40
Pitch 7.62mm
Orientation Right Angle
Current Rating 16A
Approval Agency CB, CSA, KEMA, UL, cULus
Number of Contacts 1
Wire Gauge 12-26 AWG
Voltage 300V
Max Supply Voltage 250V
Max Current Rating 16A
Current 10A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Terminal and Terminal Block Type MODULAR TERMINAL BLOCK
Number of Ways 1
Safety Approval UL; CSA
Mating Orientation 45° (135°) Angle with Board
Wire Termination Screwless - Spring Cage, Tension Clamp
Fastening Method SPRING LOADED
Test Voltage 4kV
Dimensions
Height 16.9mm
Length 16.9mm
Width 7.62mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
