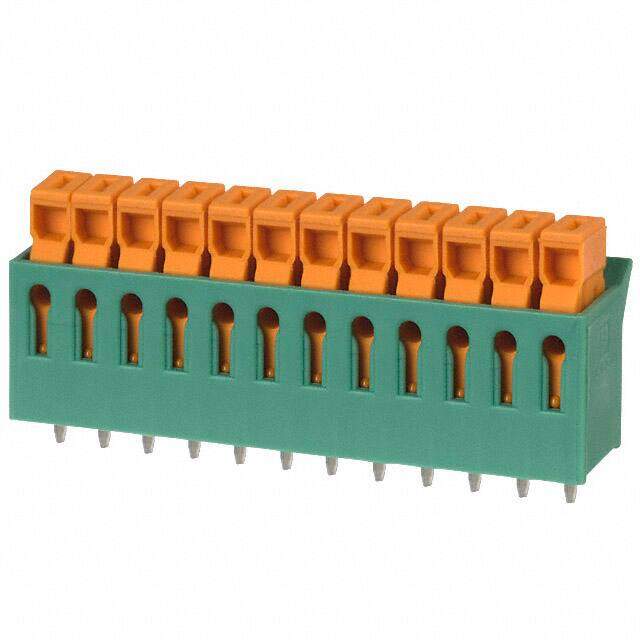

1706277
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
TERM BLK 12P SIDE ENT 3.81MM PCB
PDF
/
Inventory: 4559
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Insulation Material Nylon
Housing Material Polyamide (PA), Nylon
Weight 70.999992g
Technical
Packaging Bulk
Published 2010
Series COMBICON IDC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type IDC, IDT
Color Green
Voltage - Rated 160V
HTS Code 8536.69.40.40
Pitch 0.150 3.81mm
Orientation Straight
Depth 12.4mm
Current Rating 5A
Approval Agency CSA, UL
Number of Contacts 12
Wire Gauge 22-28 AWG
Voltage 300V
Max Supply Voltage 160V
Max Current Rating 5A
Number of Levels 1
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 26 AWG
Number of Decks 1
Terminal and Terminal Block Type MODULAR TERMINAL BLOCK
Number of Ways 12
Safety Approval UL; CSA
Mating Orientation Horizontal with Board
Wire Termination Screwless - IDC
Wire Cross Section 0.34 mm2
Dimensions
Length 46.91mm
Thickness 41.91mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
