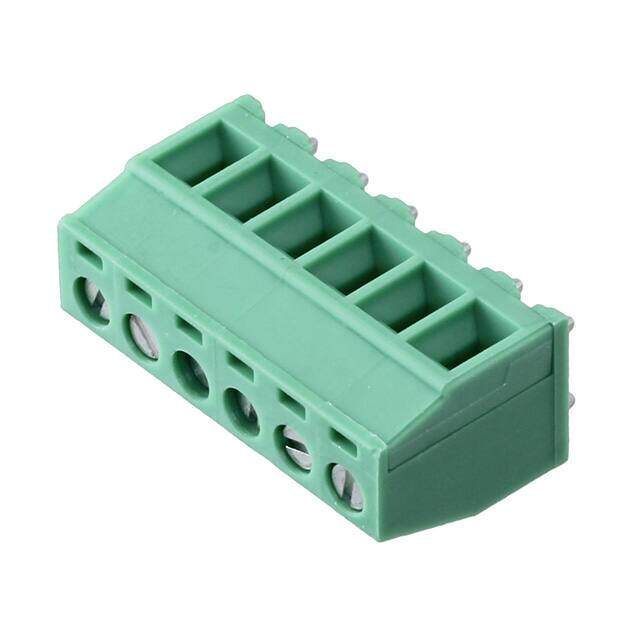

1705582
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
Conn PC Terminal Block F 6 POS 3.81mm Solder ST Thru-Hole 12A
PDF
/
Buying Options
Total Price: USD $6.99
Unit Price: USD $6.993533
≥1 USD $6.993533
≥10 USD $6.59767
≥100 USD $6.224223
≥500 USD $5.871896
≥1000 USD $5.539536
Inventory: 7476
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 24.999999g
Technical
Packaging Bulk
Published 2010
Series COMBICON MKDSD
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Color Green
Number of Rows 1
Voltage - Rated 320V
Additional Feature PA, 94V-0
Pitch 0.150 3.81mm
Orientation Straight
Depth 9.3mm
Current Rating 8A
Wire Gauge 14-30 AWG
Voltage 300V
Max Supply Voltage 200V
Max Current Rating 12A
Number of Levels 1
Current 10A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 26 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 6
Safety Approval UL
Mating Orientation Horizontal with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M2
Number of Positions Per Level 6
Dimensions
Height 15.3mm
Length 9.3mm
Width 23.97mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
