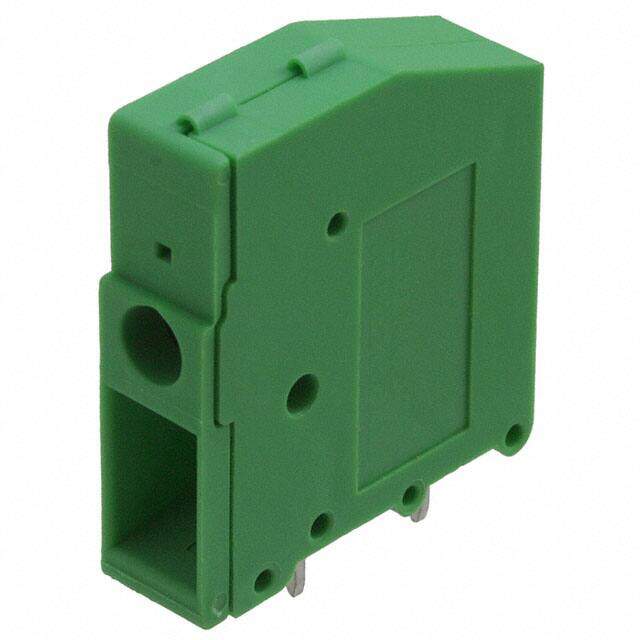

1703034
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
Conn PC Terminal Block F 1 POS Solder RA Thru-Hole 36A
PDF
/
Buying Options
Total Price: USD $2.82
Unit Price: USD $2.816
≥1 USD $2.816
Inventory: 30
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 9.220002g
Technical
Packaging Bulk
Published 2003
Series COMBICON FRONT
Feature Interlocking (Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Color Green
Voltage - Rated 500V
Additional Feature POLYAMIDE, 94V-2
HTS Code 8536.90.40.00
Pitch 7.62mm
Orientation Right Angle
Depth 26mm
Current Rating 32A
Number of Contacts 1
Wire Gauge 10-24 AWG
Voltage 300V
Max Supply Voltage 500V
Max Current Rating 32A
Current 30A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 10 AWG
Terminal and Terminal Block Type MODULAR TERMINAL BLOCK
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 1
Safety Approval UL; CSA
Mating Orientation Horizontal with Board
Wire Termination Screw - Pressure Clip
Screw Thread M3
Wire Cross Section 6 mm2
Dimensions
Height 33.4mm
Length 26mm
Width 34.3mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Lead Free
