1703021
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

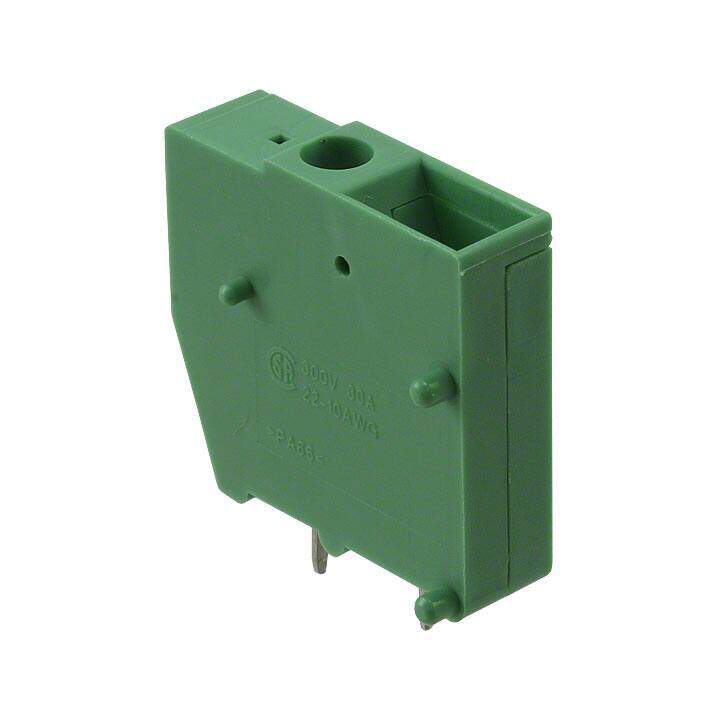

Phoenix Contact 1703021, FRONT 4-V-7, 62, PCB terminal block
PDF
/
Buying Options
Total Price: USD $8.03
Unit Price: USD $8.034344
≥1 USD $8.034344
≥10 USD $7.579574
≥100 USD $7.150541
≥500 USD $6.745791
≥1000 USD $6.363958
Inventory: 7324
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 8.983g
Technical
Packaging Bulk
Published 2003
Series COMBICON FRONT
Feature Interlocking (Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Color Green
Number of Rows 1
Voltage - Rated 500V
Additional Feature PA, 94V-2
HTS Code 8536.90.40.00
Pitch 7.62mm
Orientation Straight
Depth 27mm
Current Rating 32A
Number of Contacts 1
Wire Gauge 10-24 AWG
Voltage 300V
Max Supply Voltage 500V
Max Current Rating 32A
Current 30A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 20 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 1
Safety Approval UL
Mating Orientation Vertical with Board
Wire Termination Screw - Pressure Clip
Screw Thread M3
Wire Cross Section 4 mm2
Dimensions
Height 33mm
Length 7.62mm
Width 31mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Lead Free
