1701649
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

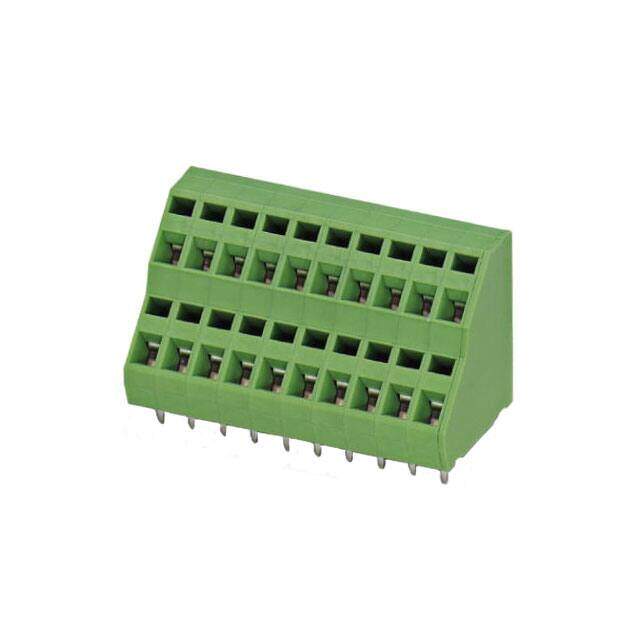

Phoenix Contact COMBICON ZFKKDSA Series 5.08mm Pitch PCB Terminal Block with Spring Cage Termination, Through Hole
PDF
/
Buying Options
Total Price: USD $43.29
Unit Price: USD $43.288939
≥1 USD $43.288939
≥200 USD $17.273825
≥500 USD $16.696149
≥1000 USD $16.41125
Inventory: 7112
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Contact Material - Plating Tin Plated
Technical
Packaging Bulk
Published 2015
Series COMBICON ZFKKDSA
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Color Green
Pitch 0.200 5.08mm
Wire Gauge 12-26 AWG
Voltage 300V
Number of Levels 2
Current 10A
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Positions Per Level 20
Mating Orientation 45° (135°) Angle with Board
Wire Termination Screwless - Spring Cage, Tension Clamp
Compliance
RoHS Status RoHS Compliant
